Technical Specifications

General	HS-200-SNGL-E-A	HS-200-SNGL-E-D
Number	9302542	9302543
Weight	102 g (with cable and connector)	65 g (with cable and connector)
Operating Temperature	-15 … +55 °C	-15 … +55 °C
IP Rating	IP54	IP54
Cable / Connector	Fixed cable (1.2 m) with XLR4F	Fixed cable (1.2 m) with USB-C
Buttons	-	-

Headphone	HS-200-SNGL-E-A	HS-200-SNGL-E-D
Transducer Type	Dynamic, closed	Dynamic, closed
Frequency Response	20 Hz … 20 kHz	20 Hz … 20 kHz
Impedance	32 Ω	32 Ω
Characteristic SPL	91 dB @ 1 mW, 1 kHz	104 dB @ -10 dBFs, 1 kHz
Distortion THD+N	< 5 % @ 1 kHz	< 5 % @ 1 kHz

Mircophone	HS-200-SNGL-E-A	HS-200-SNGL-E-D
Transducer Type	back electret	back electret
Polar Pattern	unidirectional	unidirectional
Frequency Response	20 Hz … 8 kHz	20 Hz … 8 kHz
Nominal Impedance	680 Ω	680 Ω
Supply Power	5 V, 200 µA	2.5 V, 270 µA

Frequency response and THD

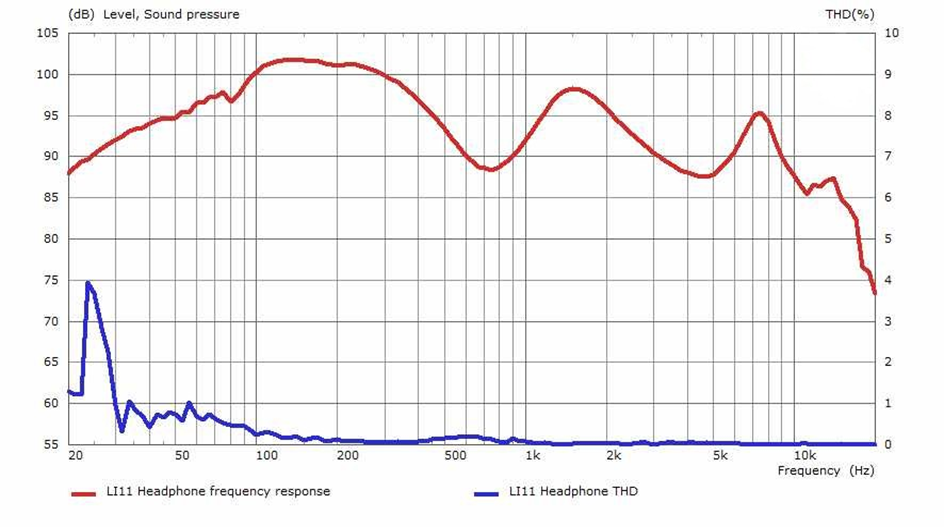

HS-200-SNGL-A Frequency (Red= FQ, Blue= THD).png — HS-200-SNGL-A Frequency (Red= FQ, Blue= THD)

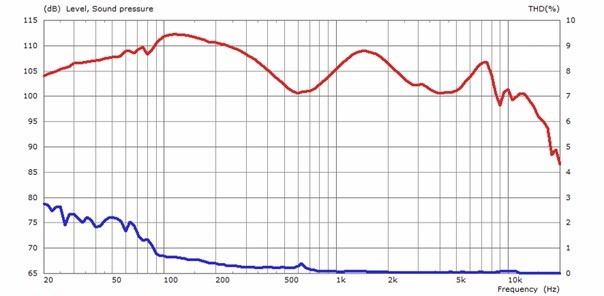

HS-200-SNGL-D Frequency (Red= FQ, Blue= THD).jpg — HS-200-SNGL-D Frequency (Red= FQ, Blue= THD)

Microphone Characteristics

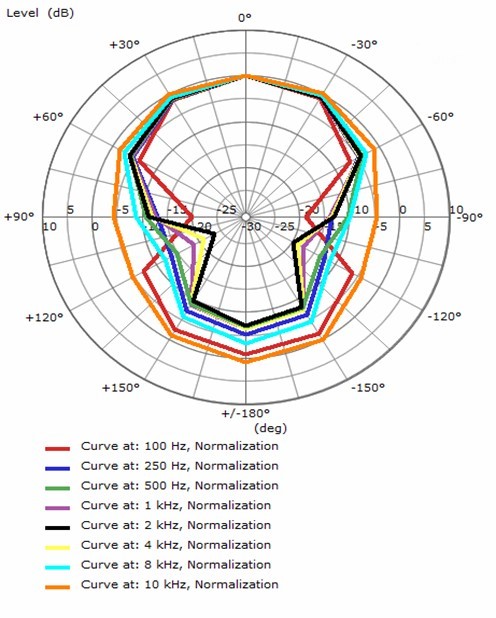

Microphone Characteristics HS-200-E.jpg — Microphone Characteristics HS-200-E
