General
|
HS-500-DUAL-E-A |
||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Number
|
9302554 |
||||||||||||||
Weight
|
500 g |
||||||||||||||
Operating Temperature
|
-10 … +55 °C |
||||||||||||||
Storage temperature
|
-25 … +60 °C |
||||||||||||||
IP Rating
|
IP54 |
||||||||||||||
Cable / Connector
|
Exchangeable cable (1.2 m), Mini-XLR7F to XLR7F |
||||||||||||||
Buttons
|
3× (2× PTT, 1× Reply) |
||||||||||||||
Noise attenuation
|
Average value (90° angle)
|
Headphone
|
HS-500-DUAL-E-A |
|---|---|
Transducer Type
|
dynamic |
Frequency Response
|
20 Hz … 20 kHz |
Sensitivity
|
112 dB (1 kHz @ 0 dBV) |
Impedance
|
45 Ω (25+20) |
Max. SPL
|
128 dB |
THD
|
< 1 % (@ 1 kHz, 0 dBV) |
Mircophone
|
HS-500-DUAL-E-A |
|---|---|
Transducer Type
|
back electret |
Polar Pattern
|
(Hyper) Cardiod |
Frequency Response
|
20 Hz … 20 kHz |
Sensitivity
|
7 mV/Pa @ 1 kHz |
Nominal Impedance
|
1.2 kΩ |
THD
|
< 3 % |
Supply Power
|
1 … 10 V |
Operating current
|
500 µA |

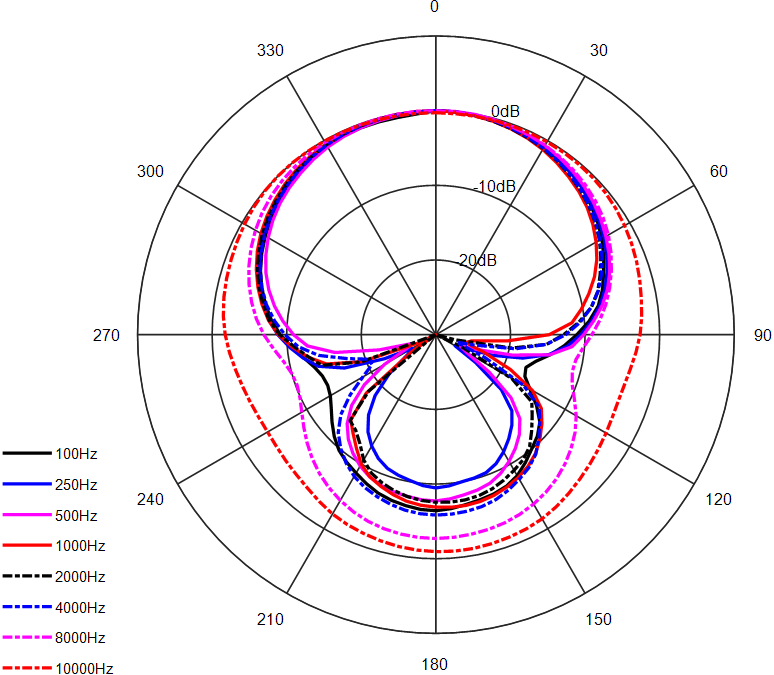

Microphone Characteristics
