General
|
HS-400-SNGL-E-A |
HS-400-DUAL-E-A |
|---|---|---|
Number
|
9302546 |
9302547 |
Weight
|
340 g |
360 g |
Operating Temperature
|
-10 … +55 °C |
-10 … +55 °C |
Storage Temperature
|
-25 … +60 °C |
-25 … +60 °C |
IP Rating
|
IP54 |
IP54 |
Cable / Connector
|
Exchangeable cable (1.2 m), Mini-XLR7F to XLR4F |
Exchangeable cable (1.2 m), Mini-XLR7F to XLR4F |
Buttons
|
1× (Reply) |
1× (Reply) |
Headphone
|
HS-400-SNGL-E-A |
HS-400-DUAL-E-A |
|---|---|---|
Transducer Type
|
dynamic |
dynamic |
Frequency Response
|
20 Hz … 20 kHz |
20 Hz … 20 kHz |
Sensitivity
|
119 dB (1 kHz @ 0 dBV) |
119 dB (1 kHz @ 0 dBV) |
Impedance
|
45 Ω (25+20) |
45 Ω (25+20) |
Max. SPL
|
130 dB (@ 1 kHz) |
130 dB (@ 1 kHz) |
THD
|
< 1 % (@ 1 kHz, 0 dBV) |
< 1 % (@ 1 kHz, 0 dBV) |
Mircophone
|
HS-400-SNGL-E-A |
HS-400-DUAL-E-A |
|---|---|---|
Transducer Type
|
back electret |
back electret |
Polar Pattern
|
(Hyper) Cardiod |
(Hyper) Cardiod |
Frequency Response
|
20 Hz … 12 kHz |
20 Hz … 12 kHz |
Sensitivity
|
7 mV/Pa @ 1 kHz |
7 mV/Pa @ 1 kHz |
Nominal Impedance
|
1.2 kΩ |
1.2 kΩ |
THD
|
< 3 % |
< 3% |
Supply Power (bias voltage)
|
1 … 10 V |
1 … 10 V |

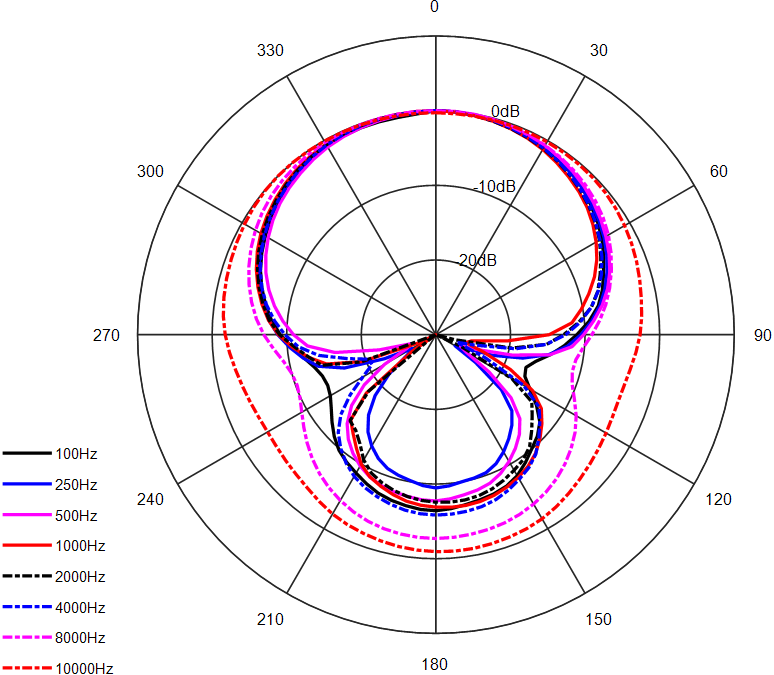

Microphone Characteristics
