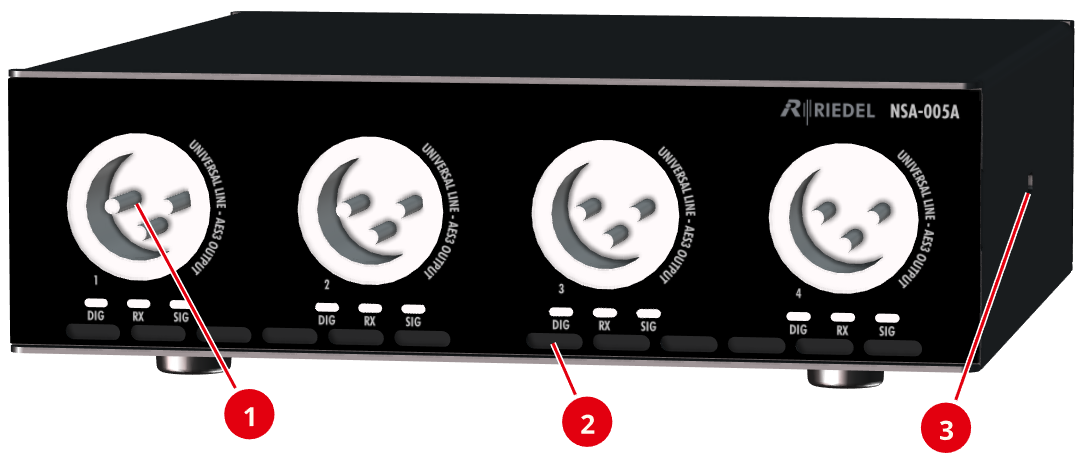

Front view
|
|
Universal outputs (XLR-3, male) |
4× |
|
|
Air intakes |
12× |
|
|
Opening for attaching a Kensington lock (left & right) |
2× |

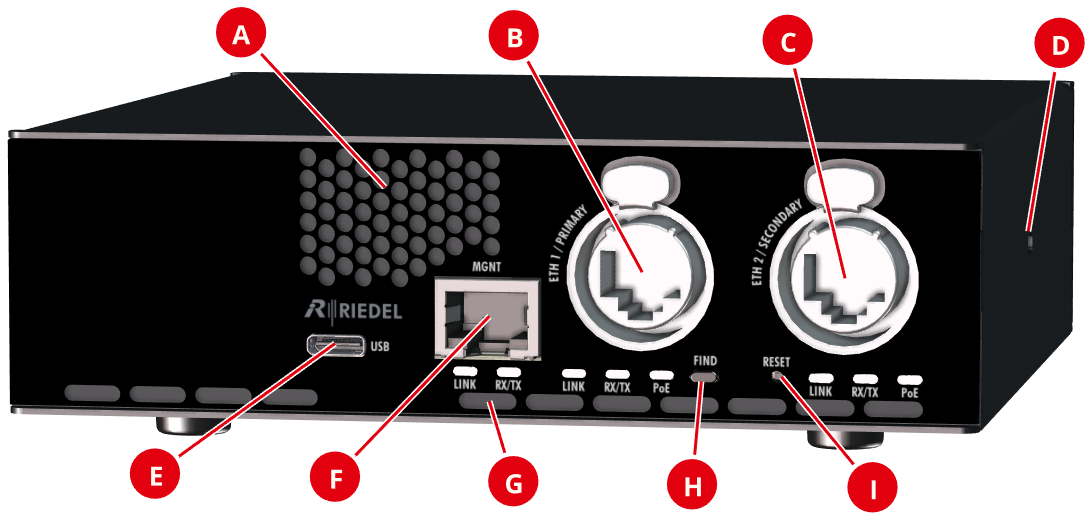

Rear view
The rear of the devices NSA-004A and NSA-005A is identical.
|
|
Air outlet |
1× |
|
|
Primary Ethernet connector (RJ-45, PoE, Neutrik etherCON) |
1× |
|
|
Secondary Ethernet connector (RJ-45, PoE, Neutrik etherCON) |
1× |
|
|
Opening for attaching a Kensington lock (left & right) |
2× |
|
|
USB audio (USB Type C) |
1× |
|
|
Management Ethernet connector (RJ-45) |
1× |
|
|
Air intakes |
11× |
|
|
Find button |
1× |
|
|
Reset button (pinhole) |
1× |
