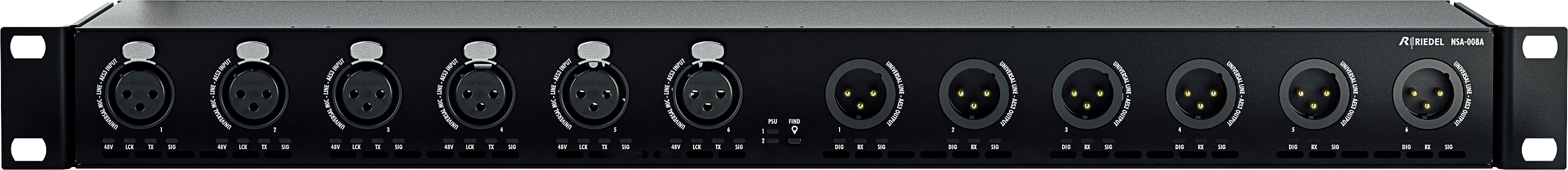

The NSA-008A is a SMPTE 2110 audio interface that features 6 inputs and 6 outputs in broadcast quality, can also function as a dual analog or digital 4-wire device and be integrated and controlled by Artist and Bolero intercom systems.
Scope of Features
-
6× Universal input (analog Mic/Line & digital AES3)
-
6× Universal outputs (analog Line & digital AES3)
-
1× USB audio, 2 channels in device mode or host mode
-
6× GPIs and 6× GPOs
-
Automatic microphone phantom power (48 V)
-
WebUI with crosspoint matrix, port and level monitoring
-
mains power supply (redundant)
-
5× Ethernet ports supporting SMPTE 2022-7 with in-band and out-band control
-
Temperature controlled redundant fans, passive cooling up to 50°C (free-standing)
-
Form factor 437 × 44 × 151 mm / 17.2” × 1.7 × 5.9” (W×H×D)
