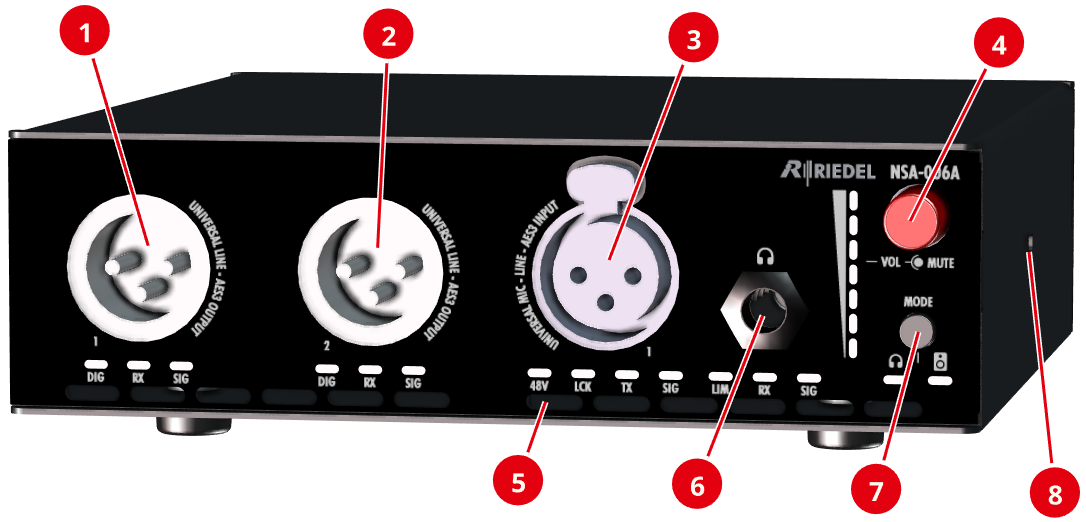

Product Elements (NSA-006A)

Universal outputs (XLR-3, male)

2×

Universal input (XLR-3, female)

1×

Volume Rotary and Mute (push function)

1×

Air intakes

12×

Stereo Headphone Output (1/4" TRS)

1×

Mode Button (Headphone/Speaker, for future use)

1×

Opening for attaching a Kensington lock (left & right)

2×

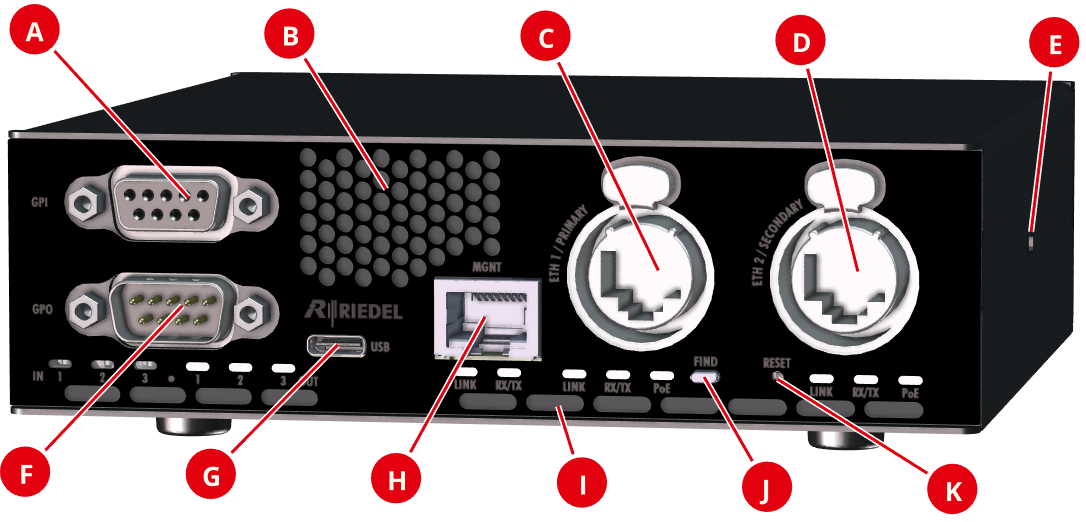

GPI – 3x inputs (D-Sub-9, female)

1×

Air outlet

1×

Primary Ethernet connector (RJ-45, PoE, Neutrik etherCON)

1×

Secondary Ethernet connector (RJ-45, PoE, Neutrik etherCON)

1×

Opening for attaching a Kensington lock (left & right)

2×

GPO – 3x outputs (D-Sub-9, male)

1×

USB audio (USB Type C)

1×

Management Ethernet connector (RJ-45)

1×

Air intakes

11×

Find button

1×

Reset button (pinhole)

1×
