Audio Connection
-

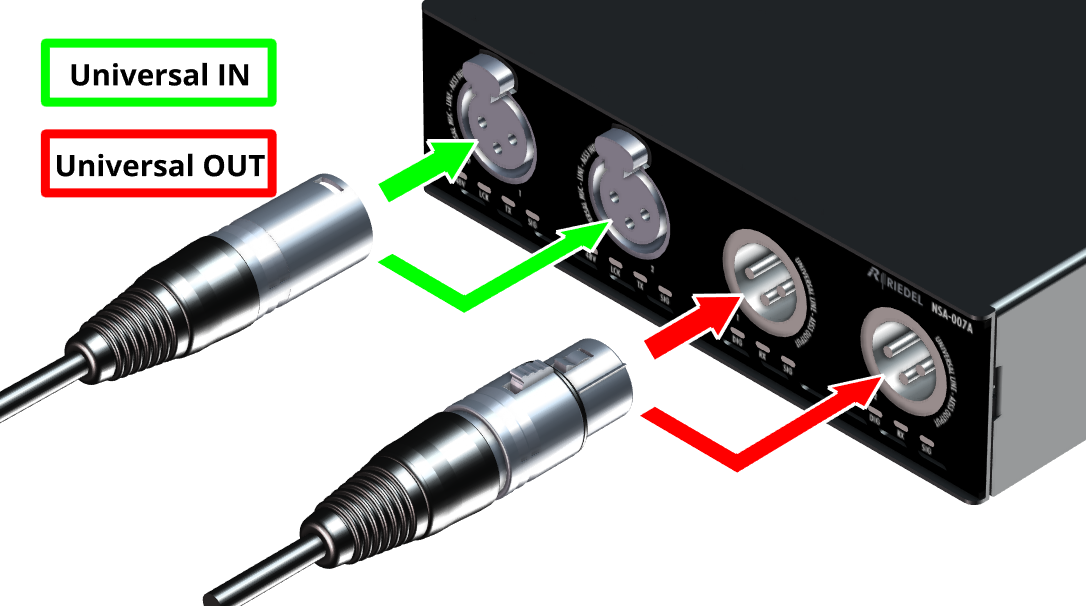

Connect your analog and/or digital inputs/outputs to the Universal In/Out interfaces.
AES67 Network Connection
-

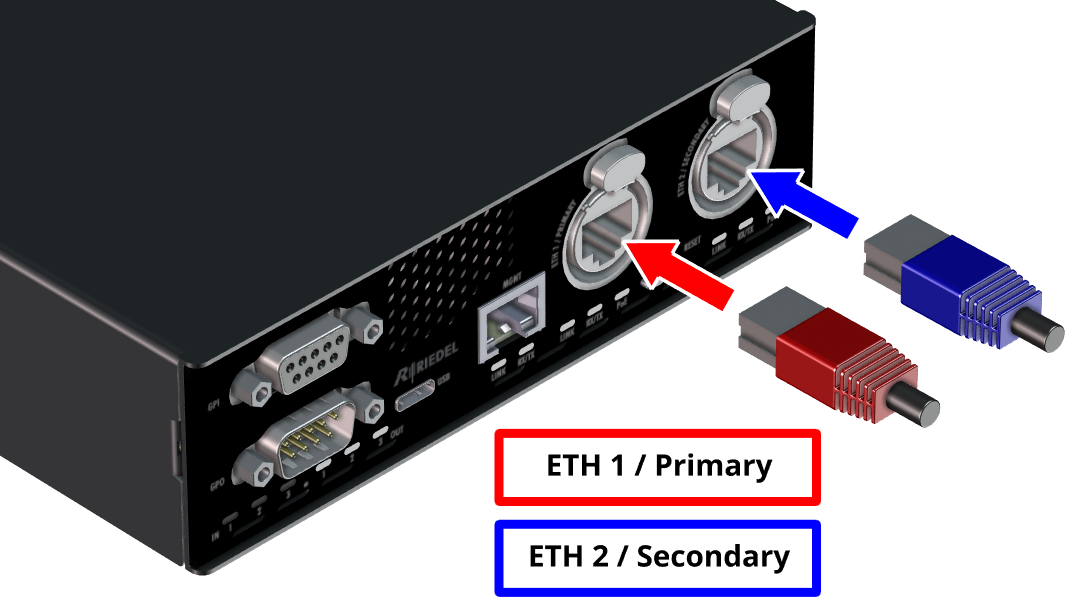

Connect the primary media network port (ETH 1 / Primary) to your AES67 network.
-
For redundant operation, also connect the secondary media network port (ETH 2 / Secondary) to your AES67 network.
Power Supply
The NSA-007A is powered exclusively via PoE (IEEE 802.3bt) through the primary and secondary media network ports.
The device's power supply has a redundant design and switches over without interruption as soon as one of the power sources is no longer available. The primary connection has priority over the secondary connection. The NSA-007A PoE device supports MPS (Maintain Power Signature) to prevent the redundant PoE connection (in idle mode) from being switched off by the PoE switch.
The PoE status can be checked via the web interface.
-
For redundancy, both network ports are connected to two separate PoE switches.
-
To shut down the unit completely, remove both Ethernet cables.
