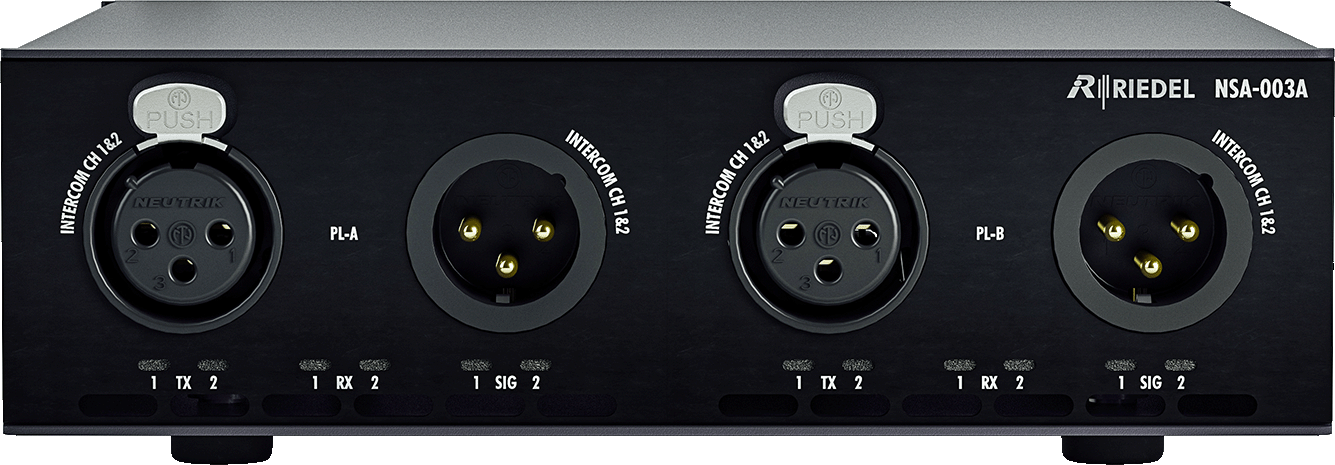

The NSA-003A is an audio interface box that enables seamless integration of third-party legacy 2-wire partylines into Artist and Bolero systems via SMPTE 2110.
Scope of Features
-
2× independent physical 2-wire analog partyline interfaces
-
User selectable Partyline Mode (2 channel RTS or ClearCom) supporting signalization
-
Automatic nulling with up to 50 dB echo elimination
-
1× USB audio, 2 channels in device mode (host mode as a future feature)
-
3× GPIs and 3× GPOs
-
WebUI with crosspoint matrix, port and level monitoring
-
PoE+ power supply (redundant)
-
3× Ethernet ports supporting SMPTE 2022-7 with in-band and out-band control
-
Temperature controlled fan (passive cooling up to 35°C ambient)
-
Form factor 145 × 42 × 151 mm / 5.7” × 1.7 × 5.9” (W×H×D)
