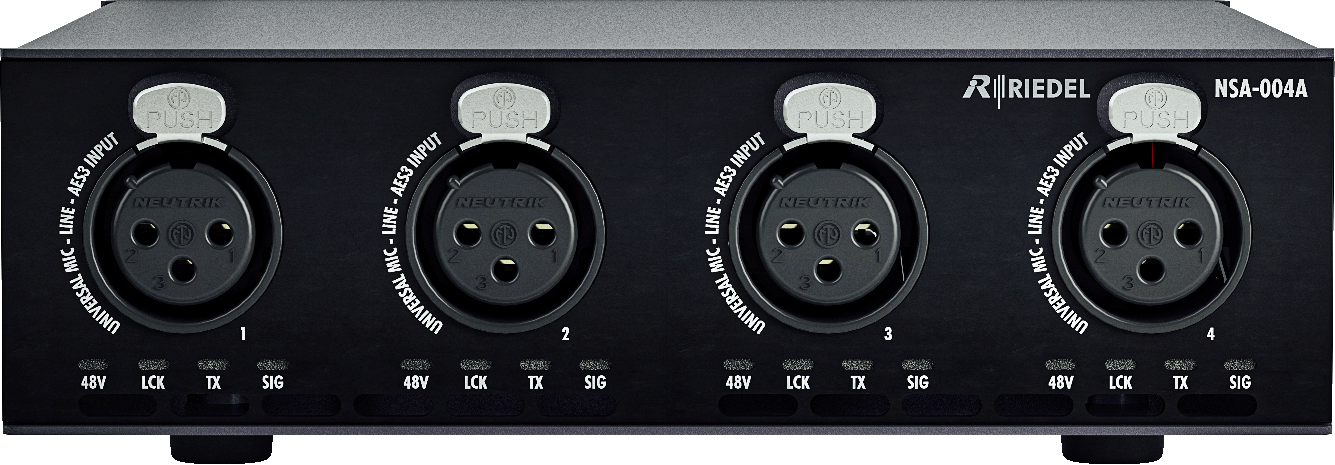

The NSA-004A is a small form factor device with 4x analog (Mic/Line) & digital (AES3) inputs for applications where small portions of inputs with flexible connection variations must be distributed over a wider area.
Scope of Features
-
4× Universal input (analog Mic/Line & digital AES3)
-
1× USB audio, 2 channels in device mode (host mode as a future feature)
-
Automatic microphone phantom power (48 V)
-
WebUI with crosspoint matrix, port and level monitoring
-
PoE+ power supply (redundant)
-
3× Ethernet ports supporting SMPTE 2022-7 with in-band and out-band control
-
Temperature controlled fan (passive cooling up to 35°C ambient)
-
Form factor 145 × 42 × 151 mm / 5.7” × 1.7 × 5.9” (W×H×D)
