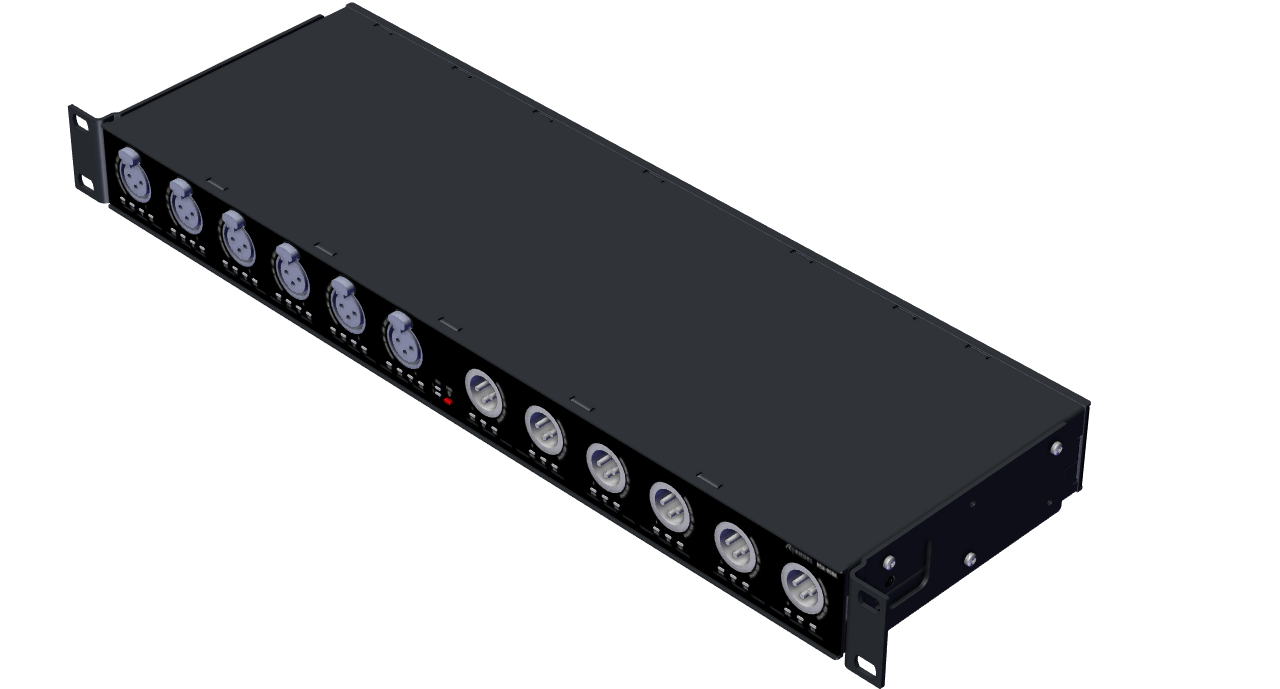

By default the 19" mounting brackets are mounted so that the front of the device faces towards the
operator.
default.png?cb=03137f198e4ee01679df485401bb4002)
The rack-mounted devices can be installed mechanically in two ways: Reversed and Recessed

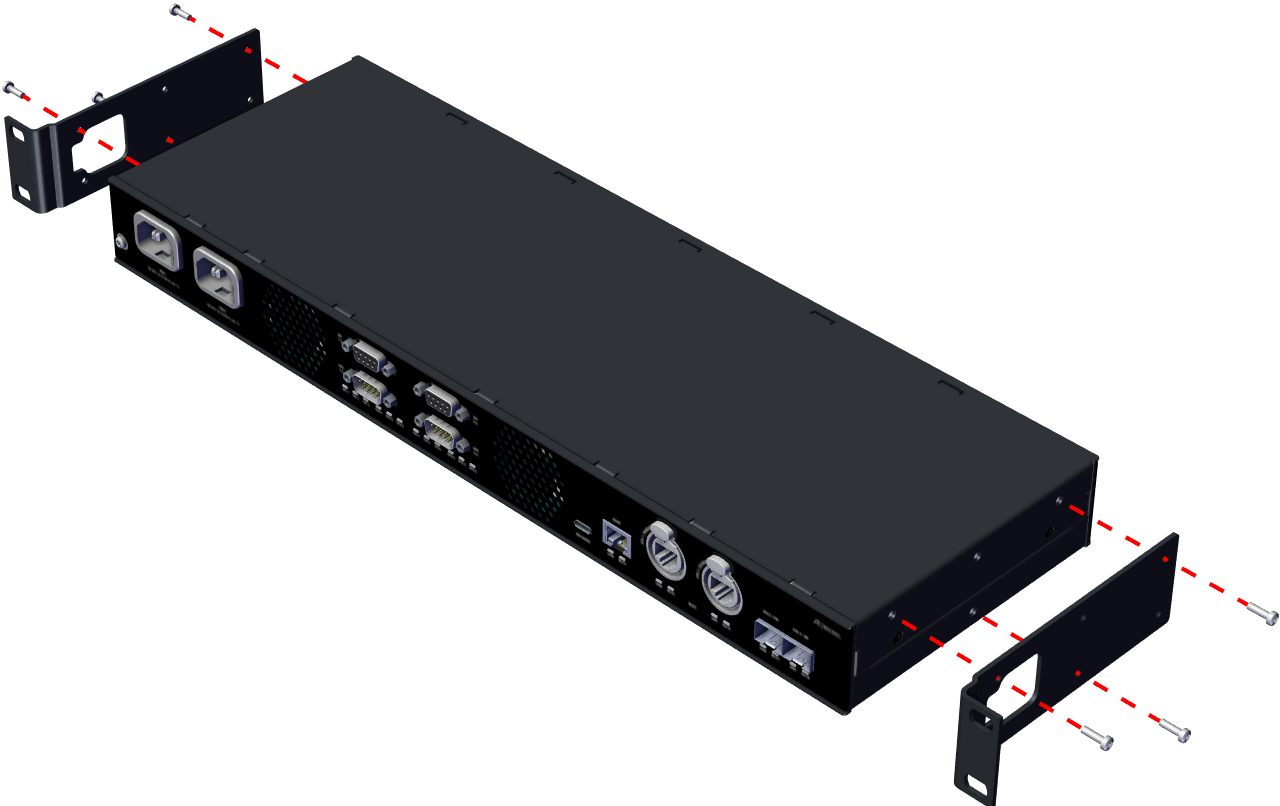

Reversed installation method
If the mounting brackets are mounted rotated by 180°, the front of the device faces towards the rack.
reversed.png?cb=31c740642b010760eb339ecb3f5c4e0c)

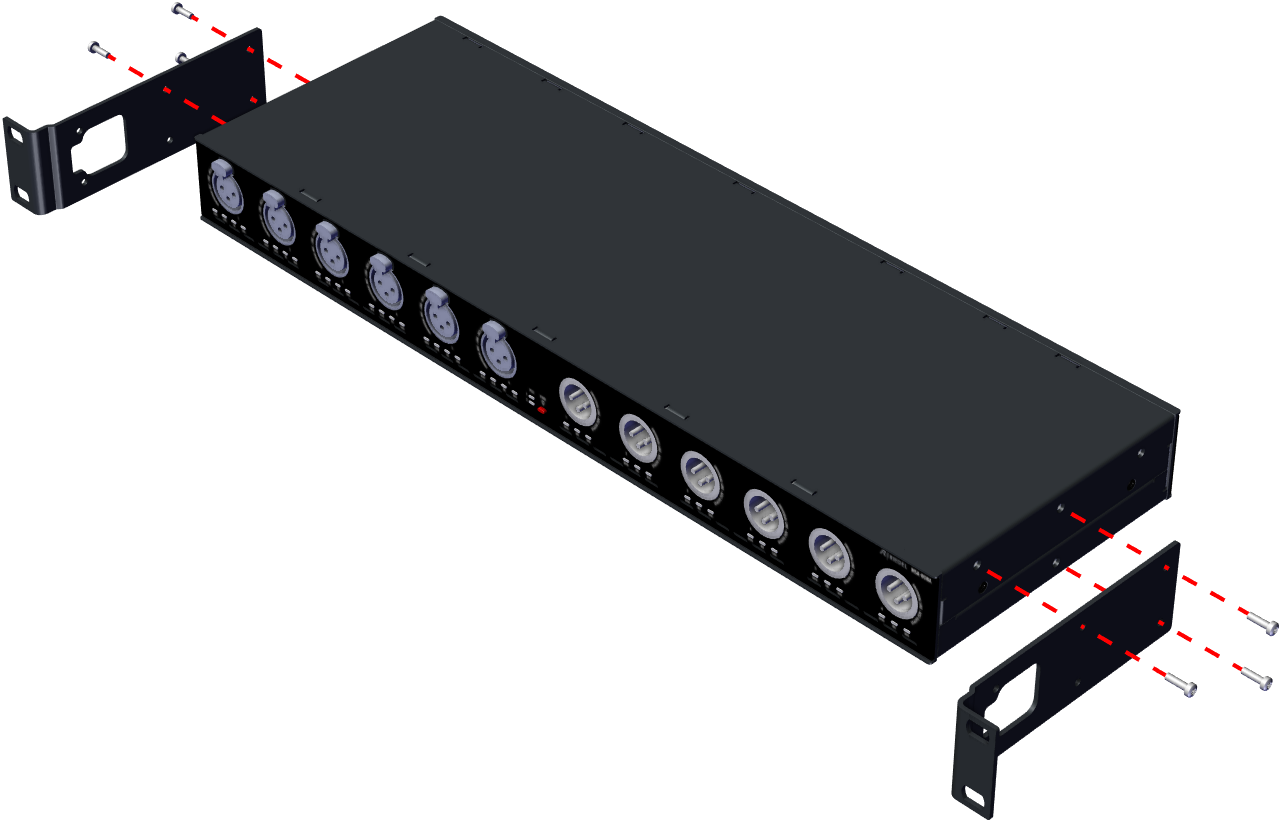

Recessed installation method
Regardless of the device's orientation, the mounting brackets can be mounted recessed to achieve a deeper installation depth.
recessed.png?cb=808e56e3f9ca4fd08530e24389aeb153)

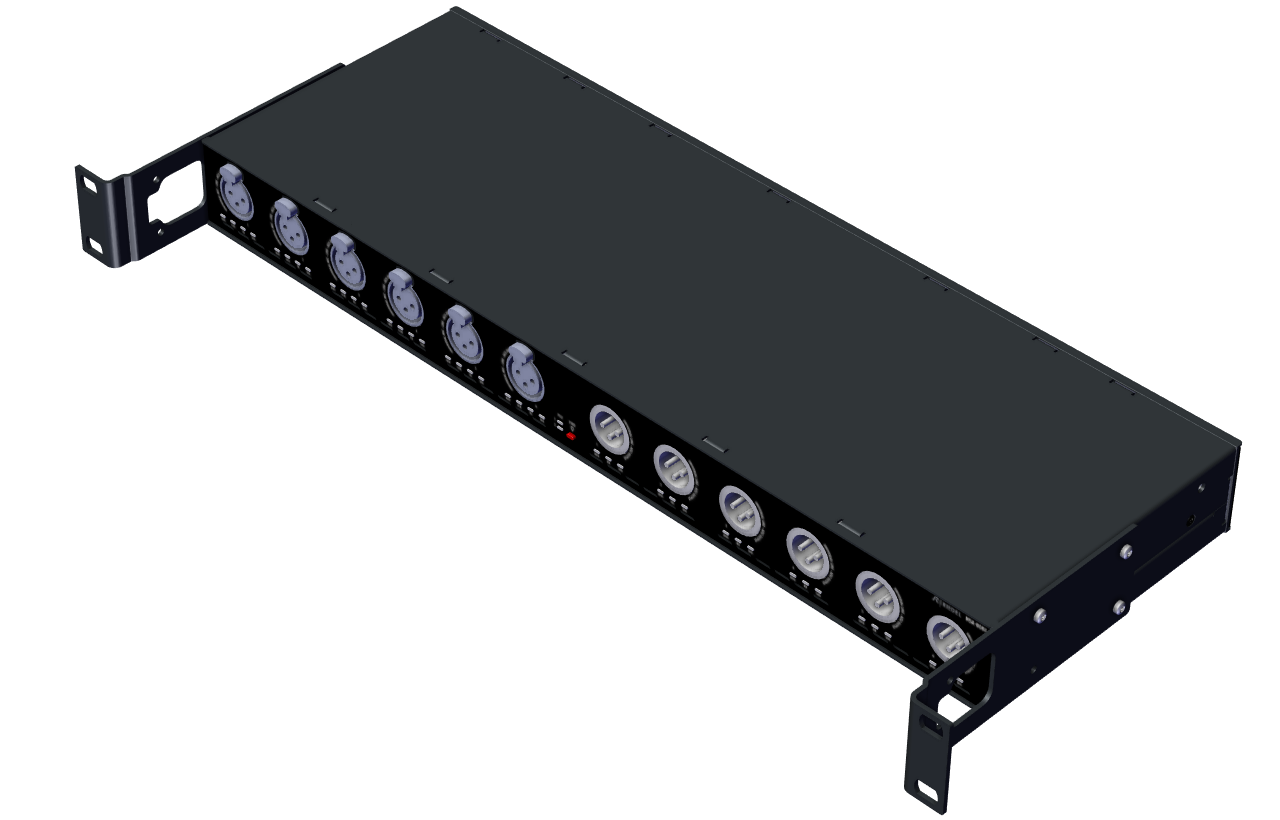

In this position, the openings in the mounting brackes allow cables to be passed through.
Cable.png?cb=c36abeeede457d8caab59fb201126684)
