Update 13th January 2026
|
Riedel Supplied COTS Hardware Options |
SL4-8x4TB-4G2C2 |
|
|---|---|---|
|
Versions |
||
|
Software |
PRP-2025-08 or higher |
|
|
Hardware Chassis |
SL4 |
|
|
Hardware PCI Config |
4G2C2 |
|
|
Hardware Sales Model |
CAPEX |
|
|
General |
||
|

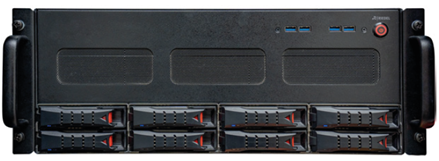

System Image |
|
|
|
escription |
4RU (57cm/22.5") 16-ch HD HDR Backend Processing Unit, 8x4TB SSD.
|
|
|
Supported Formats |
HD | 8-bit (SDR) | 10-bit (HDR) |
|
|
I/O Options: |
SDI | NDI® | TS UDP | TS RTP | RTMP (Input) | SRT | Dante Bridge |
|
|
Hardware Compatibility |
NUC | RC10 | RC200 | NUC-REMOTE | SHUTTLEXPRESS | USB-HUB |
|
|
SDI I/O |
||
|
Manufacturer and Make |
Deltacast |
|
|
Model name |
DELTA-12g-elp-h 2c |
|
|
Number of video cards |
2 |
|
|
I/O Connectors |
18x Connectors
|
|
|
Connector Types (adapter so BNC provided) |
Micro BNC (HD-BNC) |
|
|
Adapters Included |
18x HD-BNC to BNC F |
|
|
CPU |
||
|
Manufacturer and Make |
AMD |
|
|
Memory |
||
|
RAM |
256 |
|
|
GPU |
||
|
Manufacturer and Make |
Nvidia |
|
|
Power |
||
|
Power Supply |
1200W, 100-240 Vac, 50-60Hz |
|
|
Power Supply Redundancy |
Yes (2x800W) |
|
|
Mechanical & Environmental |
||
|
Mounting points |
Rack mount option |
|
|
Storage Temperature |
-40°C to 60°C (-40°F to 140°F) |
|
|
Operational Temperature |
10°C to 35°C (50°F to 95°F) |
|
|
Humidity |
8% to 90% (Non-Condensing) |
|
|
Dimensions |
173mm (H) x 440mm (W) x 610mm (D)
|
|
|
Weight |
20.95 kg |
|
|
System Cooling |
Front to back |
|
|
Media Storage |
||
|
RAID |
||
|
Storage Device Type |
SATA SSD |
|
|
Number of drives |
8 |
|
|
Capacity of drives (TB) |
4 |
|
|
RAID Type |
RAID 3 |
|
|
Total Net Capacity (TB) |
24 |
|
|
Recording Capacity indicative (varies based on channel density) |
||
|
HD 1.5G 8-bit 25/50 fps |
268 |
|
|
HD 1.5G 8-bit 29.97/59.94 fps |
234 |
|
|
HD 1.5G 10-bit 25/50 fps |
204 |
|
|
HD 1.5G 10-bit 29.97/59.94 fps |
176 |
|
|
HD 3G 8-bit 25/50 fps |
154 |
|
|
HD 3G 8-bit 29.97/59.94 fps |
131 |
|
|
HD 3G 10-bit 25/50 fps |
113 |
|
|
HD 3G 10-bit 29.97/59.94 fps |
96 |
|
|
4K 12G 8-bit 25/50 fps |
n/a |
|
|
4k 12G 8-bit 29.97/59.94 fps |
n/a |
|
|
4K 12G 10-bit 25/50 fps |
n/a |
|
|
4K 12G 10-bit 29.97/59.94 fps |
n/a |
|
|
Video |
||
|
Video formats |
||
|
HD |
720p50 | 720p59.94 | 1080i50 | 1080i59.94 | 1080p23.98 | 1080p24 | 1080p25 | 1080p29.97 | 1080psf29.97 | 1080p50 and 1080p59.94 |
|
|
UHD |
not supported |
|
|
Pixel Format |
8-bit | 10-bit |
|
|
Slow Motion Support |
||
|
Slow motion rate |
2x | 3x | 4x | 6x | 8x |
|
|
Slow Motion Modes |
Parity Violation or Line Double |
|
|
Audio |
||
|
Audio Codecs |
|
|
|
Native Audio Codec |
24-bit PCM |
|
|
Audio Inputs |
||
|
Audio I/O options |
SDI Embedded Audio: 16 tracks per video channel | External Audio Mixer: 64ch Dante |
|
|
Networking & Connectivity |
||
|
Management Port (IPMI) |
||
|
Connections |
1x RJ-45 Dedicated BMC LAN port |
|
|
Speed |
1 Gbps |
|
|
Default LAN ports |
||
|
Connections |
2x RJ45 LAN ports |
|
|
Speed |
10 Gbps |
|
|
Optional LAN ports |
||
|
Connections |
2x SFP28 LAN ports |
|
|
Speed |
10/25 Gbps |
|
|
Product Name (SKU) |
PS-4RU-NIC-25G |
|
|
GPI/O |
||
|
Connector Type |
25-Pin Sub-D |
|
|
Number of General Purpose Inputs |
8 |
|
|
Number of General Purpose Outputs |
16 |
|
|
Reference & Timecode |
||
|
Reference |
Black & Burst / HD Tri-Level via HD-BNC connector on Video card |
|
|
Timecode |
LTC input via BNC connector (unbalanced) |
|
|
USB |
||
|
USB Type A |
2x USB 3.1 ports on front panel + 2x USB 3.1 ports on rear panel |
|
|
USB Type C |
1x USB 3.2 ports on rear panel |
|
|
Export |
||
|
Contribution Streaming |
||
|
Streaming Formats |
RTMP, HTTP, UDP, SRT, RTP (H264) |
|
|
File Export |
||
|
Export of Clips or Playlists |
DNxHD MXF OP1a, DNxHD MXF OPAtom, DNxHD MOV,
|
|
|
Export from Live Input |
DNxHD MXF OP1a, DNxHD MXF OPAtom, DNxHD MOV, XDCAM MXF OP1a (option),
|
|
