Buttons (NSA-005A) | Riedel Online Help Center

Front view

There are no buttons on the front of the NSA-005A.

Rear view

The rear of the devices NSA-004A and NSA-005A is identical.

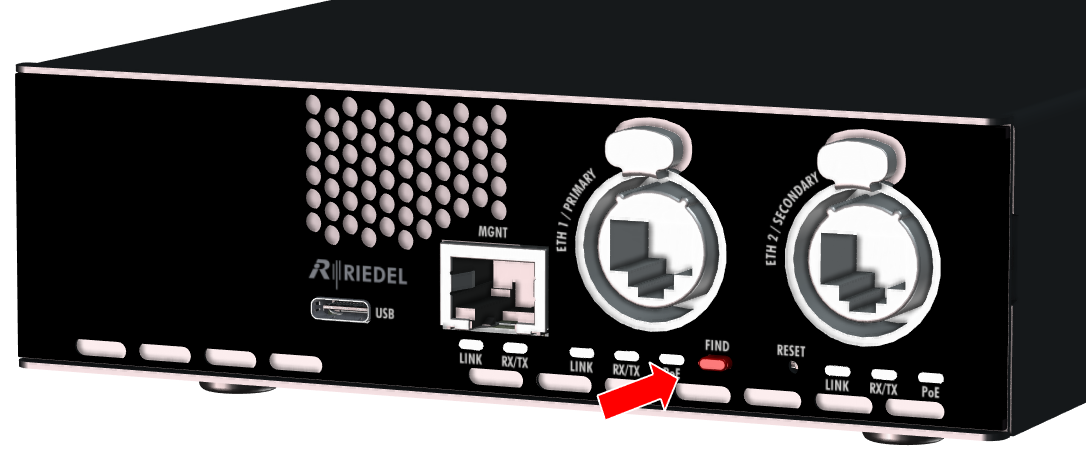

Find button

The left button between the primary and secondary Ethernet ports is used to locate the device.

When the button is pressed, all status LEDs on the front of the device start to flash.
In the device's web interface, the locating icon lights up / flashes yellow.
Localization is active until the button is pressed a second time or the localization icon is clicked in the web interface.

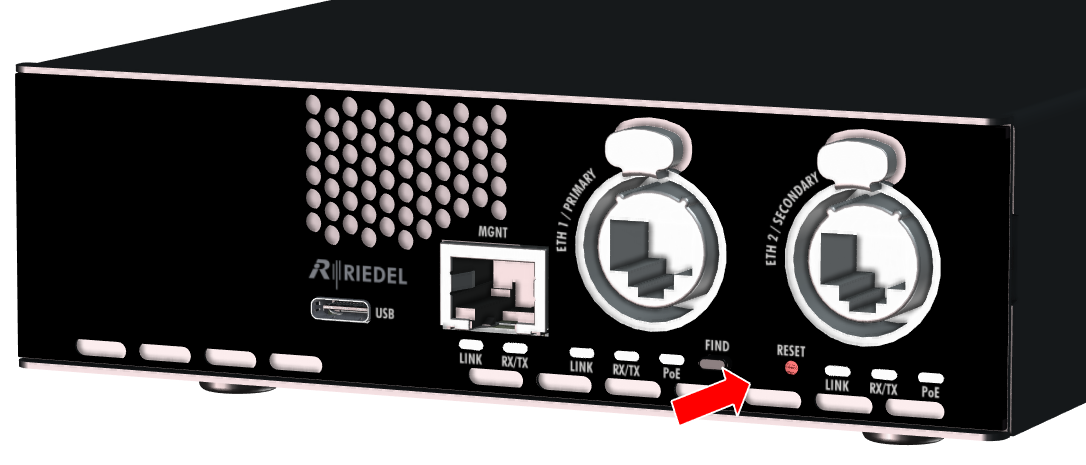

Reset button

The right button (pinhole) between the primary and secondary Ethernet ports is used to restore the factory settings (e.g. with a paper clip).

Pressing the reset button for 2 seconds resets the device to the factory settings. The device acknowledges the reset by flashing the "Link" LEDs (3× on/off cycles).
