Status LEDs (NSA-005A)

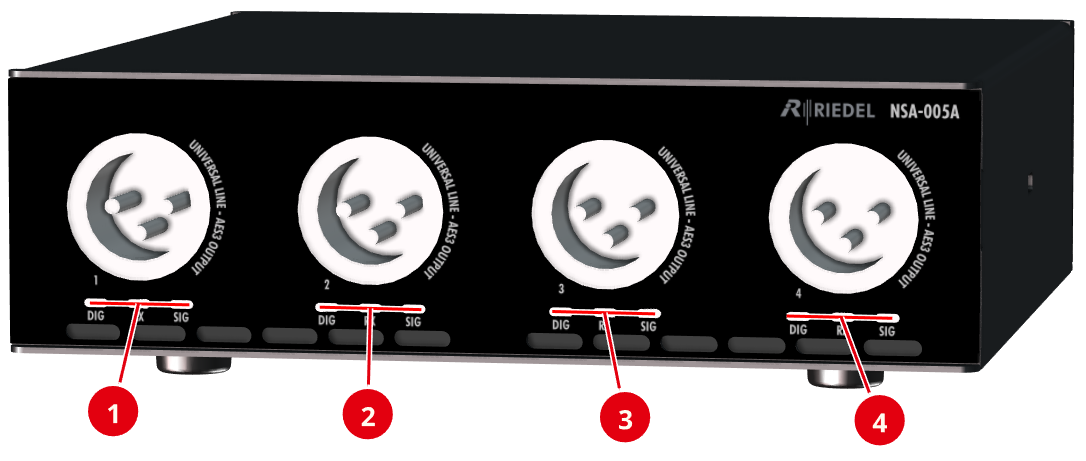

Front view

Status LEDs NSA-005A (front view)





DIG

off

The operating mode of this output is set to Analog.

green

The operating mode of this output is set to Digital.





RX

off

The output channel 1/2 does not receive an audio signal from an AES67 stream.

magenta

The output channel 1/2 receives audio from an AES67 stream.





SIG

off

Audio level < -60 dBFs

green

Audio level ≥ -60 dBFs

yellow

Audio level ≥ -20 dBFs

red

Audio level ≥ -1 dBFs

All LEDs on the front flash when the localization function of the device is active. This can be triggered both via the Find button on the device and via the web interface.

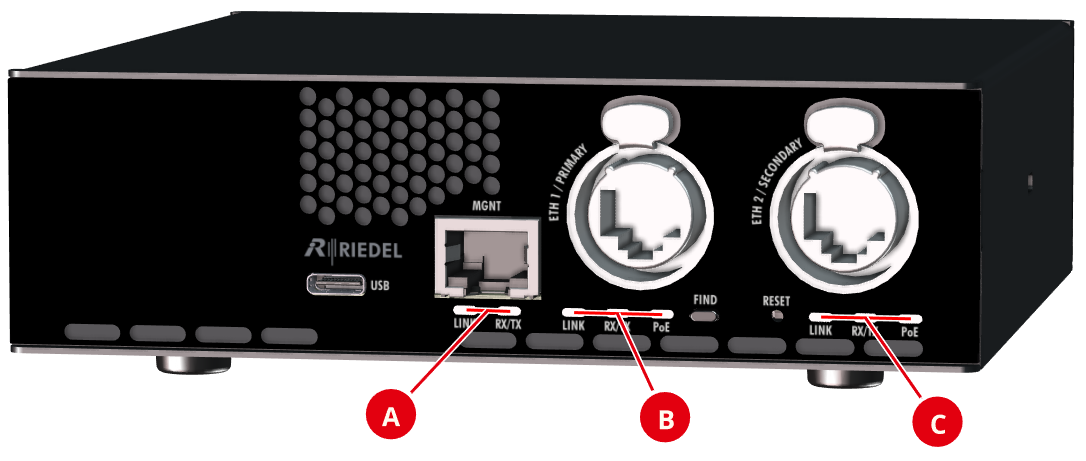

Rear view

The rear of the devices NSA-004A and NSA-005A is identical.

Status LEDs NSA-004A & NSA-005A (rear view)




LINK

off

Network is not connected.

green

Network is connected.




RX / TX

off

No Ethernet activity.

green

Ethernet activity.



PoE

off

PoE power is not available.

green

PoE power is available.

The USB audio status is only visible in the web interface. There are no LEDs on the device for this interface. The audio status indicates the current input/output level according to the SIG interface.
