Mounting Options

The StageLink devices offer the following mounting options:

• Kensington opening

• VESA mounting

• Bumper rubber case

• Rack-Shelf (future option)

The installation options are shown in the following illustrations using an NSA-003A, but generally apply to all NSA types.

Kensington Opening

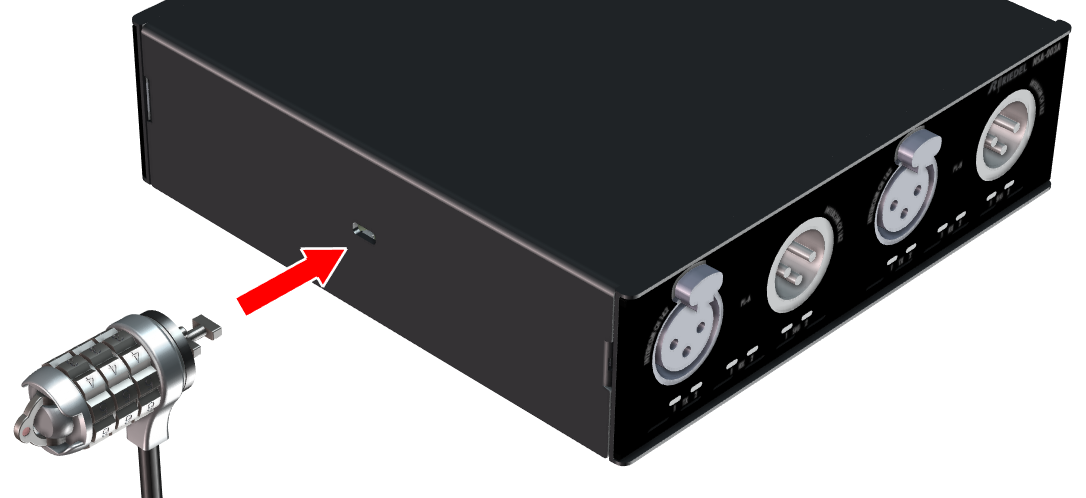

There is an opening on the left and right side of the case that is intended for securing the device with a Kensington lock.

VESA Mounting

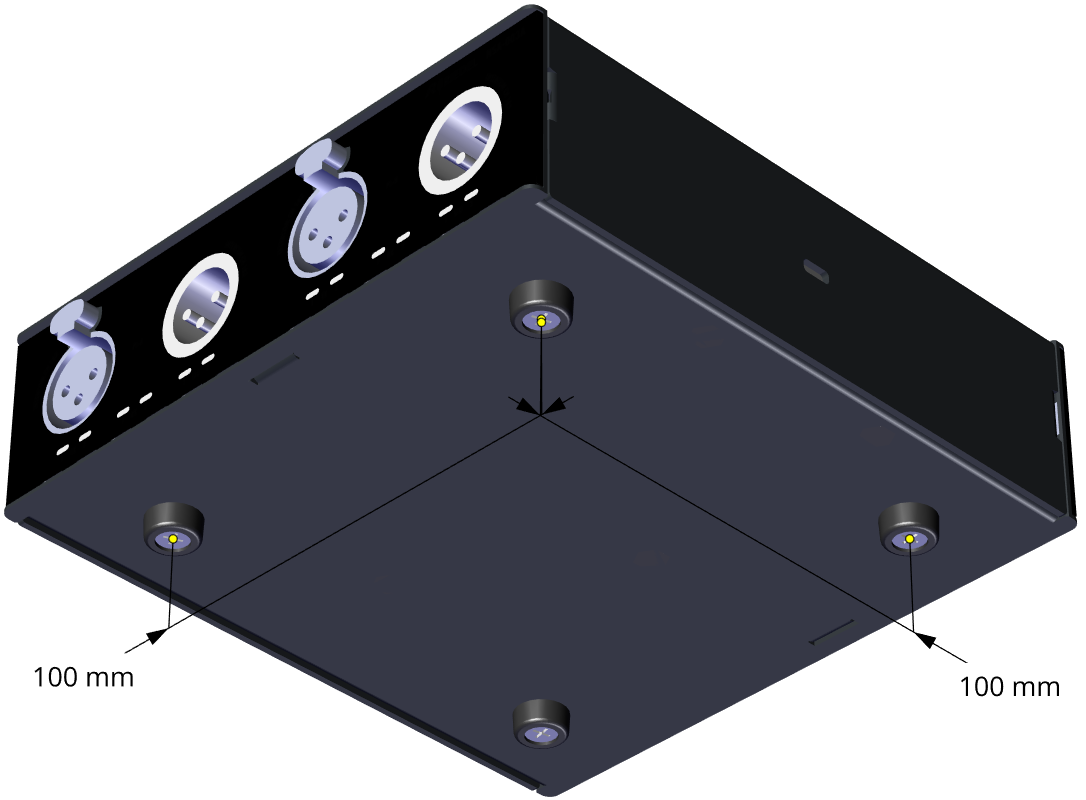

The NSA is delivered with device feet on the underside. These can be removed in order to use the threaded holes for VESA mounting options (M4, VESA 100x100), which are offered by various manufacturers:

• Tripod adapter

• Thread adapter (5/8-inch, 3/8-inch, 1/4-inch)

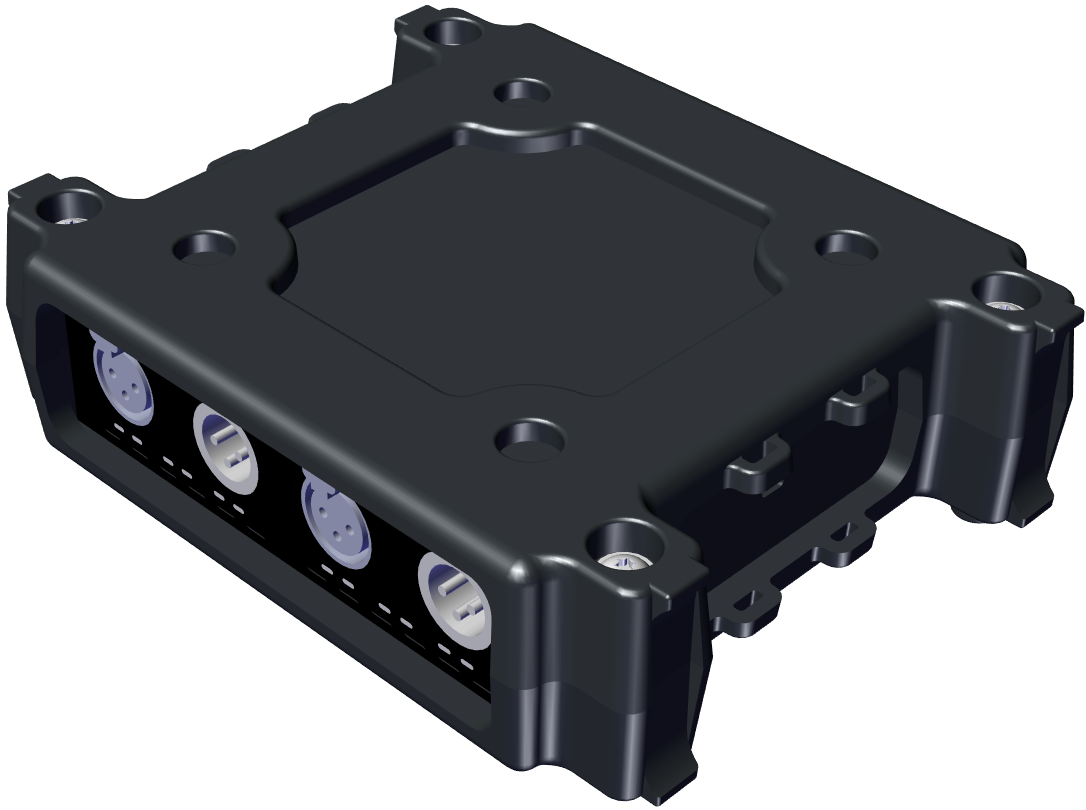

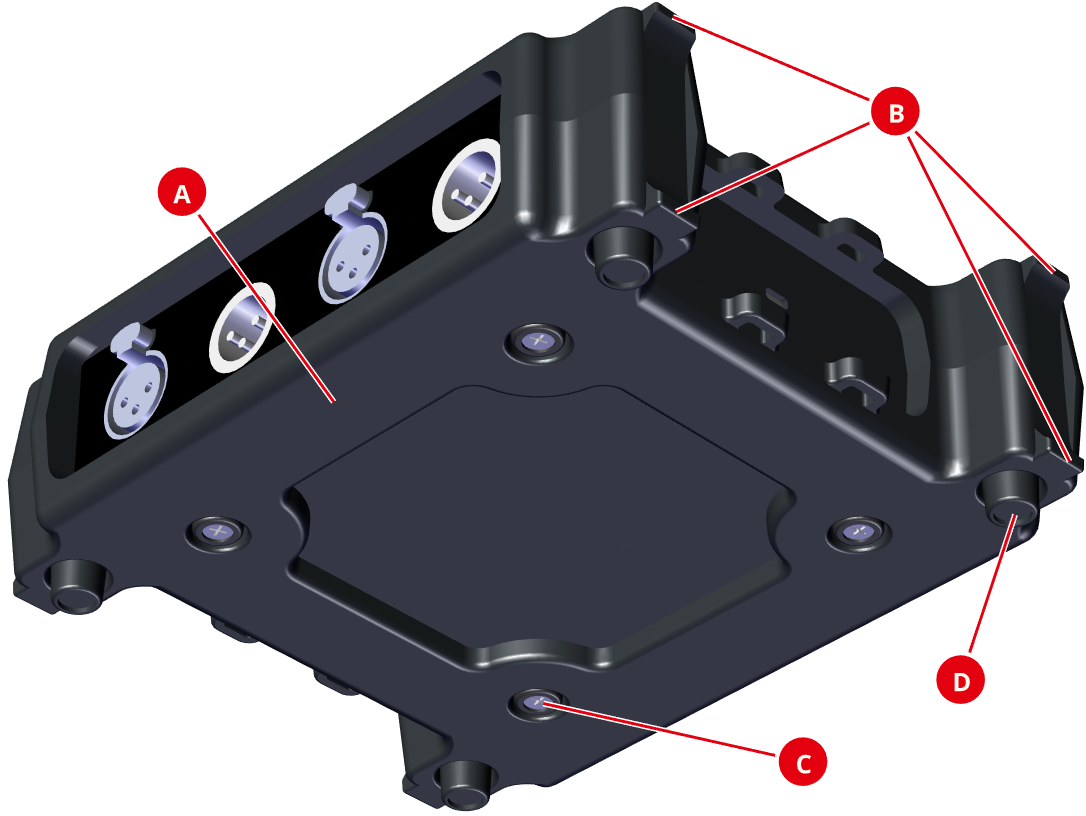

Bumper Case

The rugged bumper case offers the following options:

• Feet on the bottom

• Troughs on the top for stacking several devices

• Feet for vertical positioning

• Fixing points for cable ties

Top

Bottom

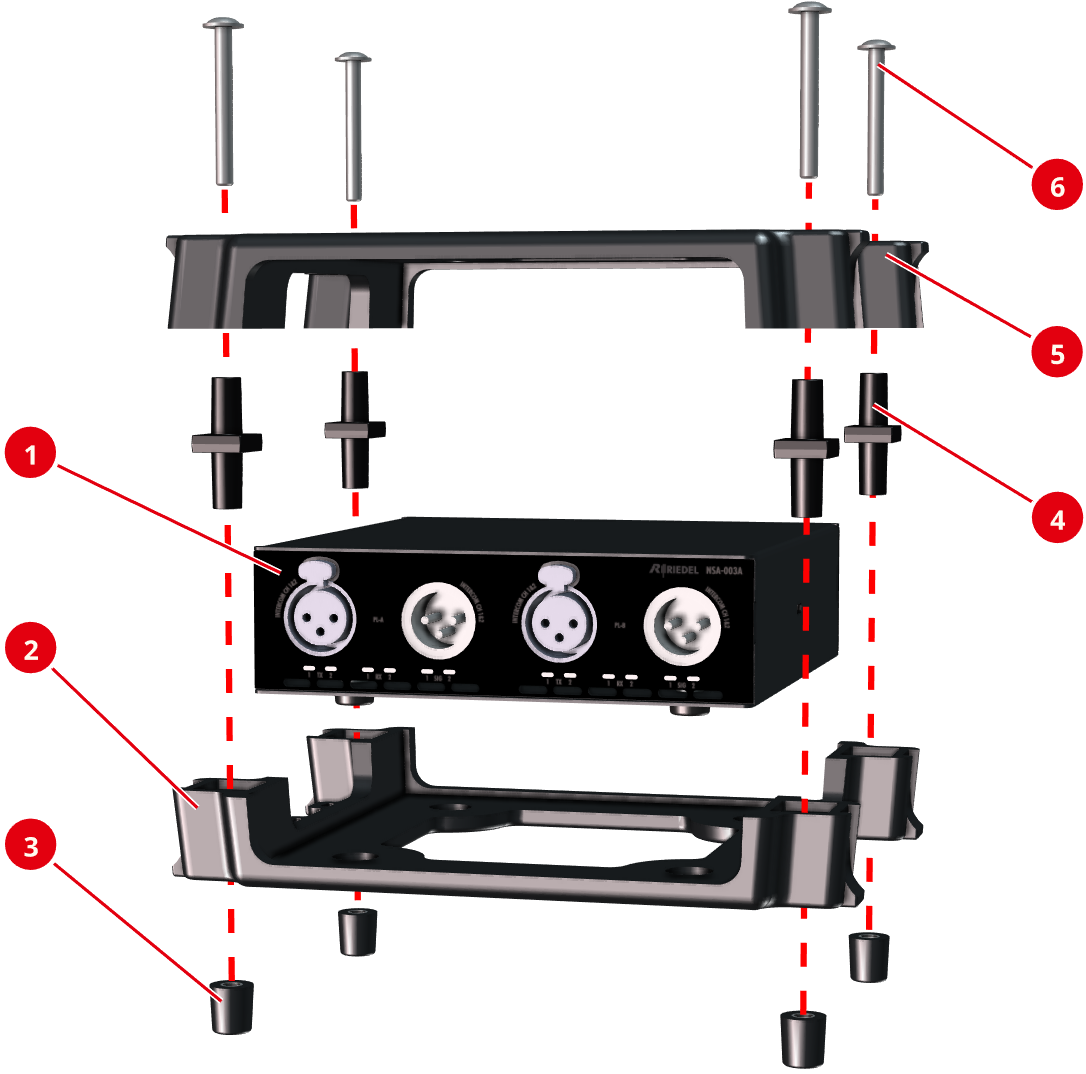

Assembly as a stand-alone device

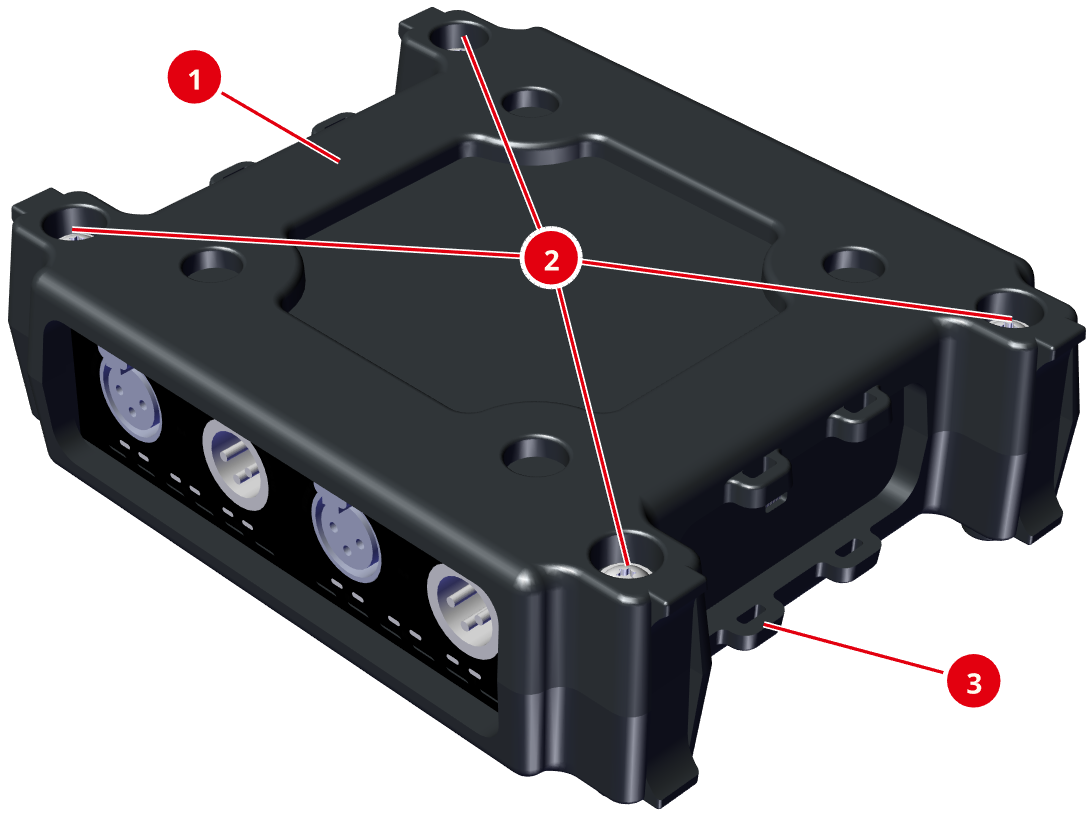

1. Place the NSA ( ) in the lower shell ( ) with the bumper feet ( ).

2. Place the four spacers ( ) and the upper shell ( ) on the lower shell.

3. Tighten the shells hand-tight with the four Torx-20 screws ( ).

Using the fixing points

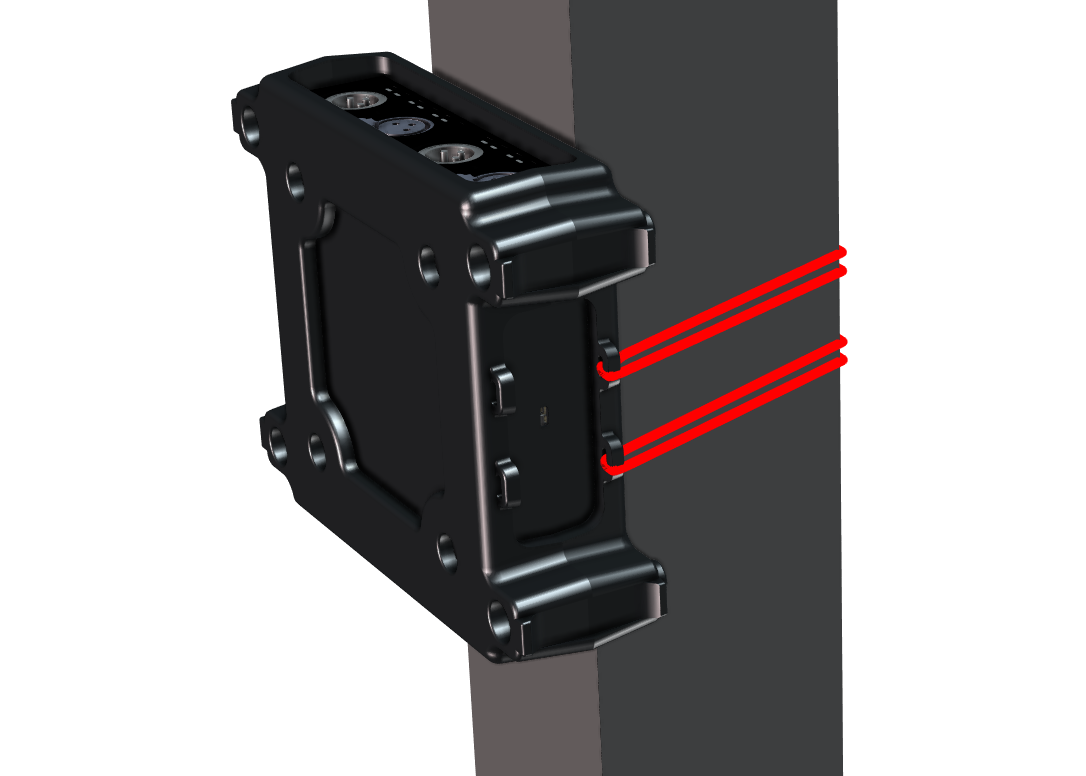

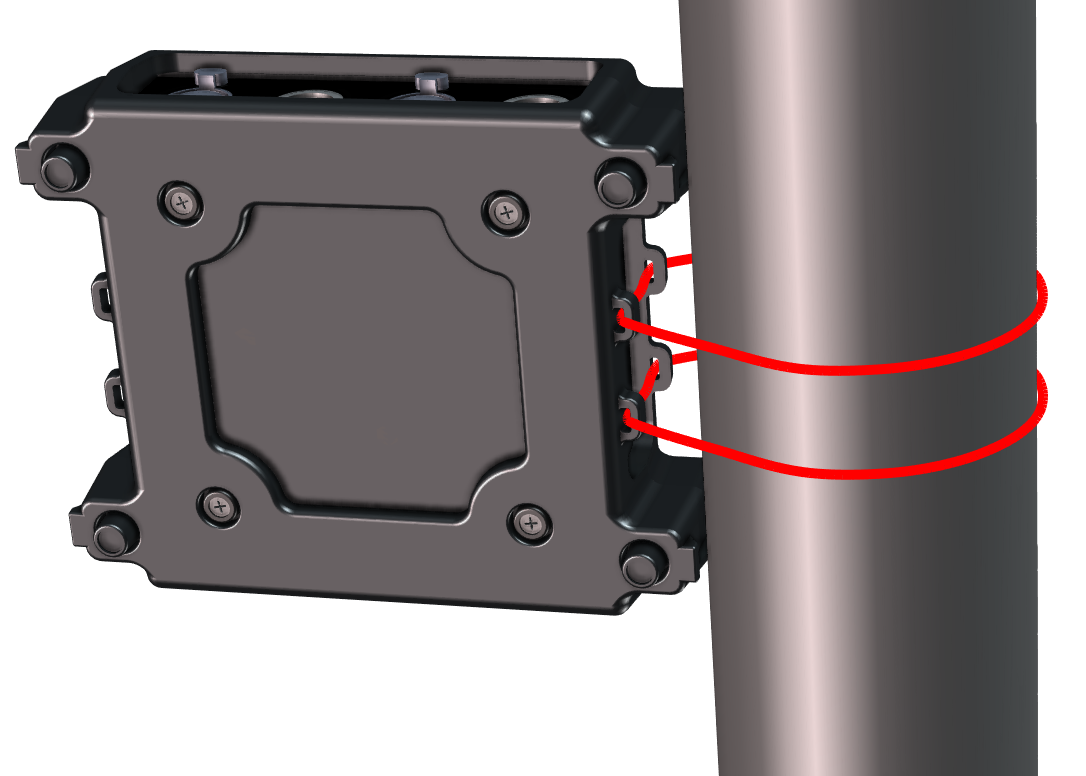

With a total of 8 mounting points, the device can be flexibly attached to wall hooks or poles, for example with cable ties, as shown in the following illustrations.

Using the Fixing Points

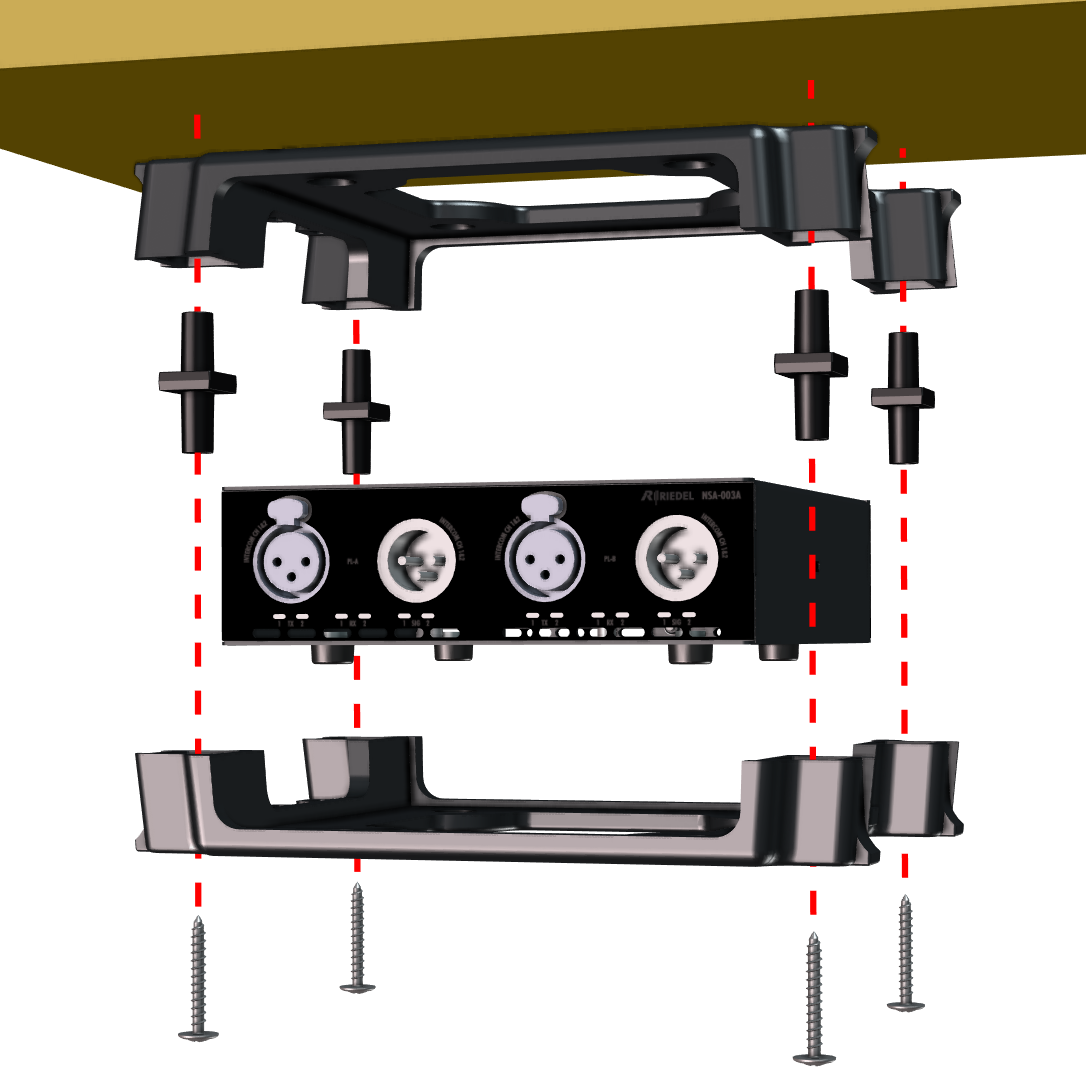

Assembly under the desk

You can mount the device under a desk by replacing the Torx screws with pan head screws. The rubber feet are not required in this case.

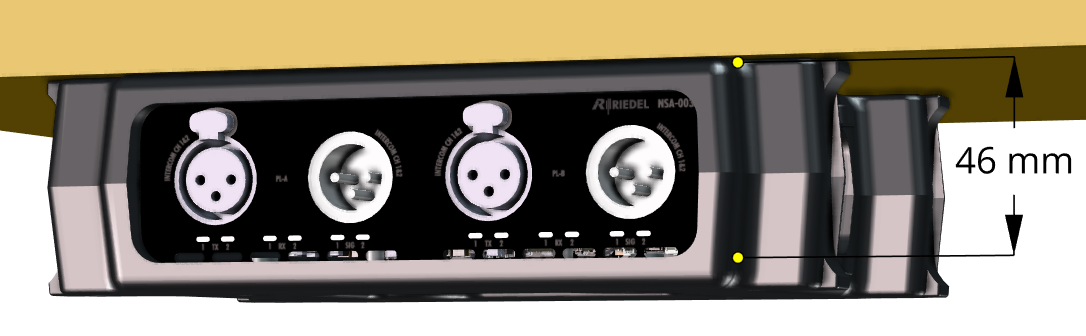

The length of the screw thread in the bumper housing is 46 mm from the lower screw opening to the top of the shell.

Assembly under the Desk
