Front view

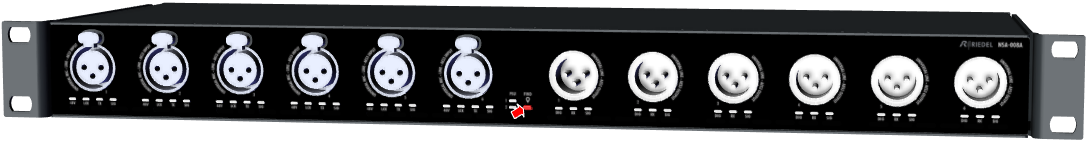

Find button
The button in the middle of the device between the inputs and outputs is used to locate the device.
-
When the button is pressed, all status LEDs on the front and the GPIO status LEDs on the rear of the device start to flash.
-
In the device's web interface, the locating icon
-
Localization is active until the button is pressed a second time or the localization icon is clicked in the web interface.
Rear view

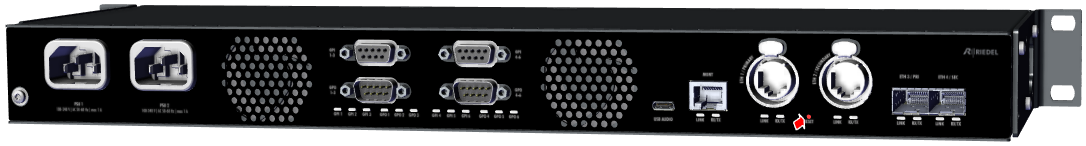

Reset button
The button on the right (pinhole) between the EtherCON connectors is used to restore the factory settings (e.g., with a paper clip).
Pressing the reset button for 2 seconds resets the device to the factory settings. The device acknowledges the reset by flashing the "Link" LEDs (3× on/off cycles).
