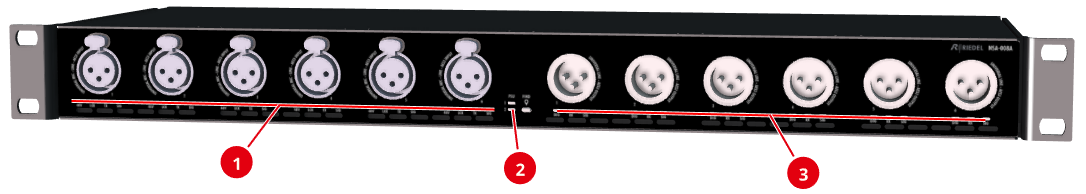

Front view
|
|
48V |
off |
The 48V phantom power supply is disabled. |
|
red |
The 48V phantom power supply is active. |
||
|
red flashing |
The 48V phantom power supply is switched to Auto and no microphone requiring phantom power is detected. |
||
|
LCK |
off |
No valid AES3 signal detected. |
|
|
yellow |
Locked, but not in sync with the PTP clock (only if SRC-OFF). |
||
|
green |
Locked, and synchronized to the AES3 input signal. |
||
|
TX |
off |
The input signal is not part of an AES67 stream. (Connection is interrupted and/or the stream is not configured). |
|
|
magenta |
The input signal is part of at least one AES67 stream that is sent from the device. |
||
|
SIG |
off |
Audio level < -60 dBFs |
|
|
green |
Audio level ≥ -60 dBFs |
||
|
yellow |
Audio level ≥ -20 dBFs |
||
|
red |
Audio level ≥ -1 dBFs |
||
|
|
PSU 1/2 |
off |
Mains power supply (1/2) is not connected. |
|
green |
Mains power supply (1/2) is connected. |
||
|
|
SIG |
off |
Audio level < -60 dBFs |
|
green |
Audio level ≥ -60 dBFs |
||
|
yellow |
Audio level ≥ -20 dBFs |
||
|
red |
Audio level ≥ -1 dBFs |
||
|
DIG |
off |
The operating mode of this output is set to Analog. |
|
|
green |
The operating mode of this output is set to Digital. |
||
|
RX |
off |
The output channel 1/2 does not receive an audio signal from an AES67 stream. |
|
|
magenta |
The output channel 1/2 receives audio from an AES67 stream. |
All LEDs on the front flash when the localization function of the device is active. This can be triggered both via the Find button on the device and via the web interface.

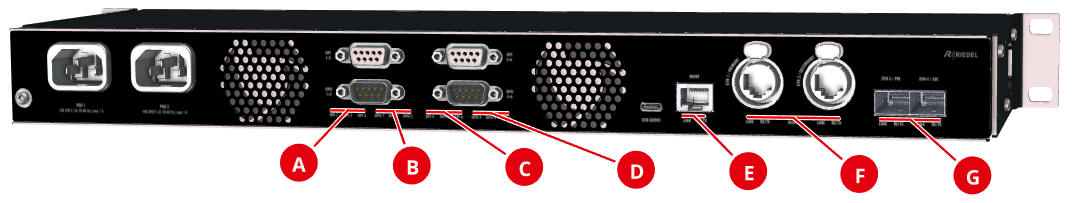

Rear view
|
|
In 1/2/3 |
off |
GPI (input) pin state is low (↓). |
|
green |
GPI (input) pin state is high (↑). |
||
|
|
Out 1/2/3 |
off |
GPO (output) is switched off. |
|
yellow |
GPO (output) is switched on. |
||
|
|
LINK |
off |
Network is not connected. |
|
green |
Network is connected. |
||
|
RX/TX |
off |
No Ethernet activity. |
|
|
green |
Ethernet activity. |
