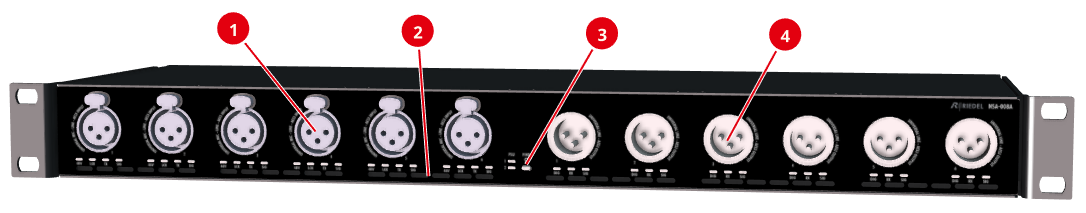

Front view
|
|
Universal inputs (XLR-3, female) |
6× |
|
|
Air intakes |
12× |
|
|
Find button |
1× |
|
|
Universal outputs (XLR-3, male) |
6× |

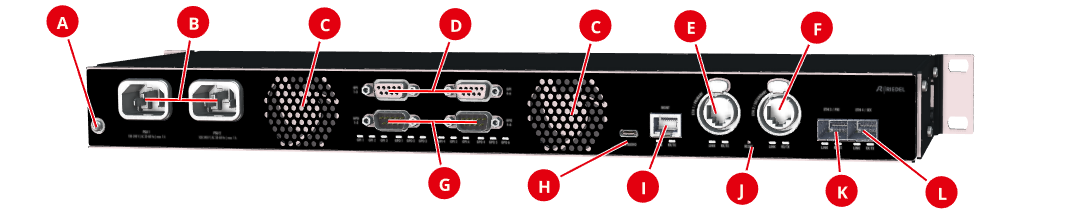

Rear view
|
|
Chassis grounding screw (M3x8, TX10) |
1× |
|
|
Mains Power Connector (redundant) |
2× |
|
|
Air outlet (fan cooling) |
2× |
|
|
GPI – 3x inputs (D-Sub-9, female) |
2× |
|
|
Primary Ethernet connector (ETH1, RJ-45, Neutrik etherCON) |
1× |
|
|
Secondary Ethernet connector (ETH2, RJ-45, Neutrik etherCON) |
1× |
|
|
GPO – 3x outputs (D-Sub-9, male) |
2× |
|
|
USB audio (USB Type C) |
1× |
|
|
Management Ethernet connector (RJ-45) |
1× |
|
|
Reset button (pinhole) |
1× |
|
|
Primary Ethernet connector (ETH3, SFP) |
1× |
|
|
Secondary Ethernet connector (ETH4, SFP) |
1× |
