Configuration

Artist-1024

#Setup-Artist-1024

WebRTC Gateway

#Setup-WebRTC-Gateway

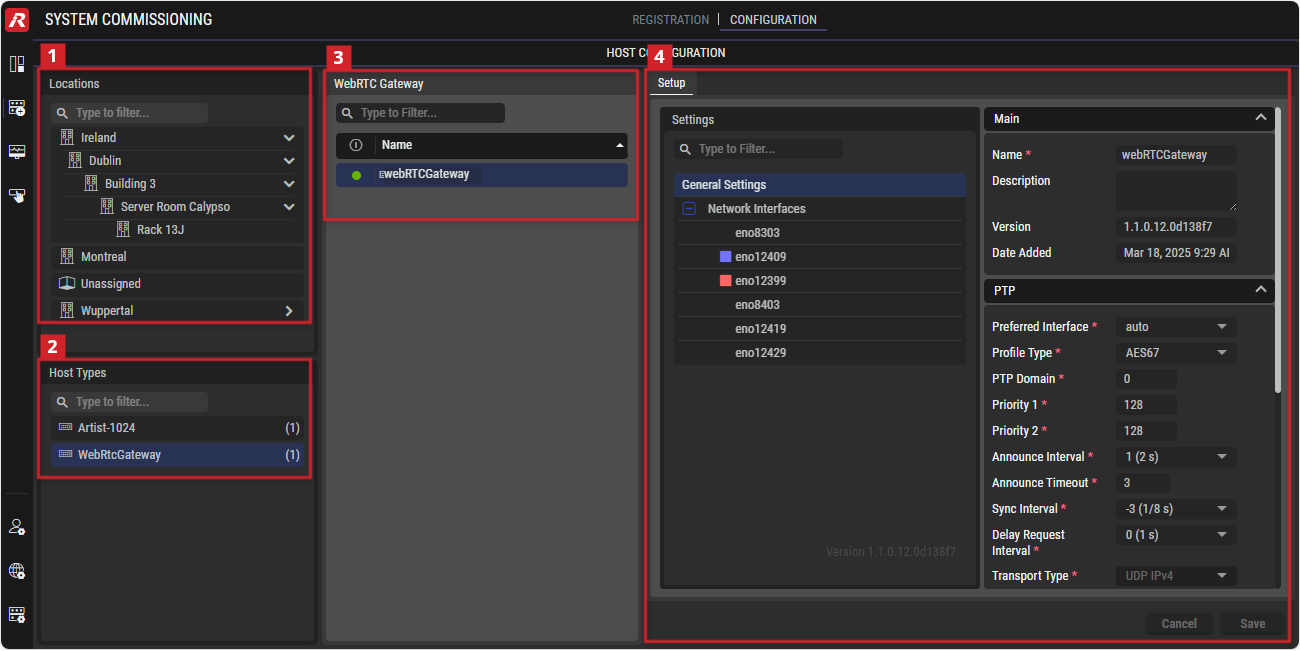

Set a filter to display only content whose search text is found in the name.

If one or more locations are selected, only host types that are located at the selected locations are displayed in the Host types section. Other host types are hidden. If no location is selected, all host types available in the STAGE system are displayed.

Set a filter to display only content whose search text is found in the name.

Select one host type to show available hosts in the Hosts section.

Set a filter to display only content whose search text is found in the name.

Indicates wheather the host is online () or offline ().

Select one host to show the available configuration details in the Setup section.

Main

Set a friendly name for this host. This host will be identified throughout STAGE by this name.

Set a meaningful description for this host.

Date and time when the host was added to STAGE.

Set the type of traffic to exchange on this interface. See also chapter Network Architecture for more information about the different network types used by STAGE.

• unassigned

• Management

• Media Main

• Media Redundant

Shows the MAC address for the selected network interface.

Shows the static IP Address, Network Mask, and Gateway for the selected network interface.

Main

Set a friendly name for this host. This host will be identified throughout STAGE by this name.

Set a meaningful description for this host.

Shows the WebRTC Gateway’s software version.

Date and time when the host was added to STAGE.

PTP

Set the Ethernet port the server is to prioritize for use to communicate on the network.

Set the PTP profile to use as a preset configuration for the below PTP settings.

Custom: Freely set the PTP parameter values.
AES67-Media: Use the PTP preset values for AES67 media signal type.
ST2059-2: Use the PTP preset values for SMPTE ST 2059-2 signal type.
AES-R16: Use the PTP preset values for AES-R16 signal type.
IEEE1588 Default: Use the PTP preset values for IEEE1588 signal type.

Set the domain to use for this WebRTC Gateway’s PTP clock.
PTP domains allow you to use multiple independent PTP clocking subdomains on a single network.

Definition of the Priority-1 of the PTP source.
Default PTP Priority 1: 128, Range: 0...255

Definition of the Priority-2 of the PTP source.
The PTP Server-Clock of AES67 cards have a higher priority than the PTP Server-Clock for panels. The highest possible priority for panels is 126. Thus the default setting of AES67 cards is increased to 120.
Default PTP Priority 2: 120, Range: 0...255

The base-2 logarithm of seconds of the interval of PTP announce messages.
Default Announce Interval: 1, Range: -3...4

The timeout for the receipt of the aforementioned messages.
Default Announce Receipt Timeout: 3, Range: 2...10

The base-2 logarithm of seconds of the interval of PTP sync messages.
Default Sync Interval: 0, Range: -7...1

The base-2 logarithm of seconds of the interval of PTP delay request messages.
Default Delay Request Interval: 0, Range: -7...5

Set the transport protocol used for PTP packets.

Set the delay mechanism in the network: E2E (End to End), P2P (Peer to Peer) or Auto.

Set if this WebRTC Gateway is to be a PTP TimeReceiver (enabled) or a PTP TimeTransmitter (disabled).

Processing

Maximum Connectable Clients

Set the maximum number of clients this WebRTC Gateway is to support. Default: 100, Range: 1...1000

Opus Packet Time

Real-time duration for the transmission of audio data packets.

Default value: 20 ms Range: 2, 5, 10, 20, 40, 60, 120 ms

Actions

Reboot

Click to reboot the WebRTC Gateway server.

Network Scope

Set the network that this interface is connected to. See also chapter Network Scopes for more information about the different network scopes used by STAGE.

• unassigned

• Management

• Media Main

• Media Redundant

Select the types of network traffic that this network interface provides access to.

ICE Candidate: Specifies the interface for WebRTC use.
Media: Specifies the interface for audio streams.
PTP: Specifies the interface for PTP clock signals.
Control: Specifies the interface for system control signals.

IPv4 / IPv6

Shows the current settings of the interfaces.
