Buttons (NSA-003A)

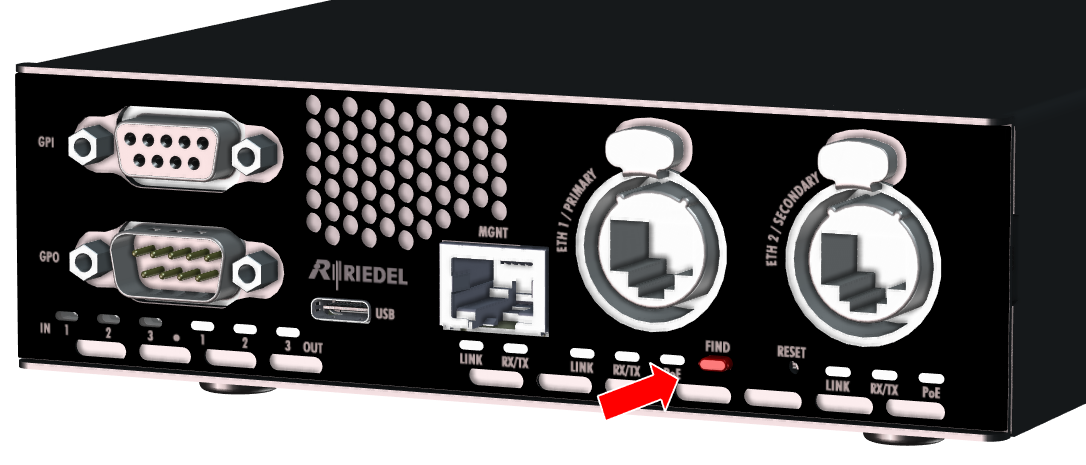

The left button between the primary and secondary Ethernet ports is used to locate the device.

• When the button is pressed, all status LEDs on the front and the GPIO status LEDs on the rear of the device start to flash.

• In the device's web interface, the locating icon lights up / flashes yellow.

• Localization is active until the button is pressed a second time or the localization icon is clicked in the web interface.

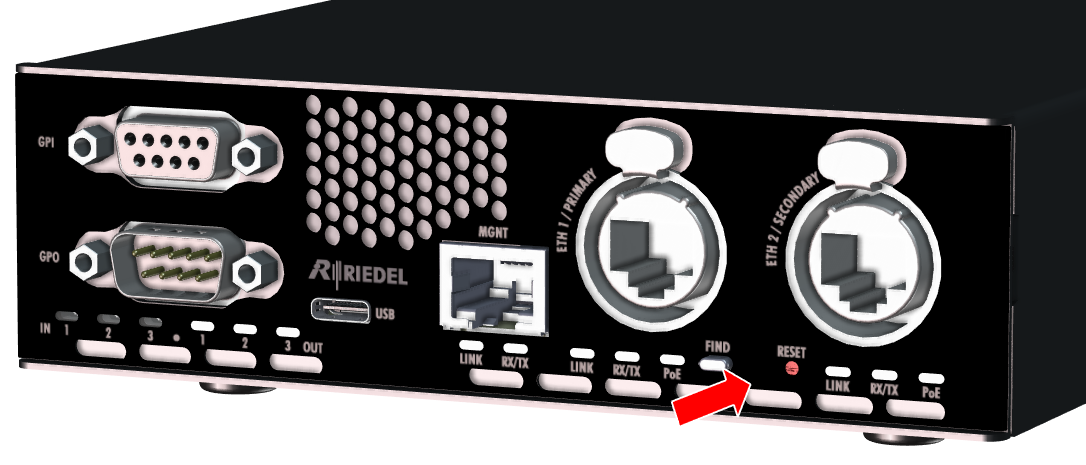

The right button (pinhole) between the primary and secondary Ethernet ports is used to restore the factory settings (e.g. with a paper clip).

Pressing the reset button for 2 seconds resets the device to the factory settings. The device acknowledges the reset by flashing the "Link" LEDs (3× on/off cycles).
