Product Elements (NSA-003A)

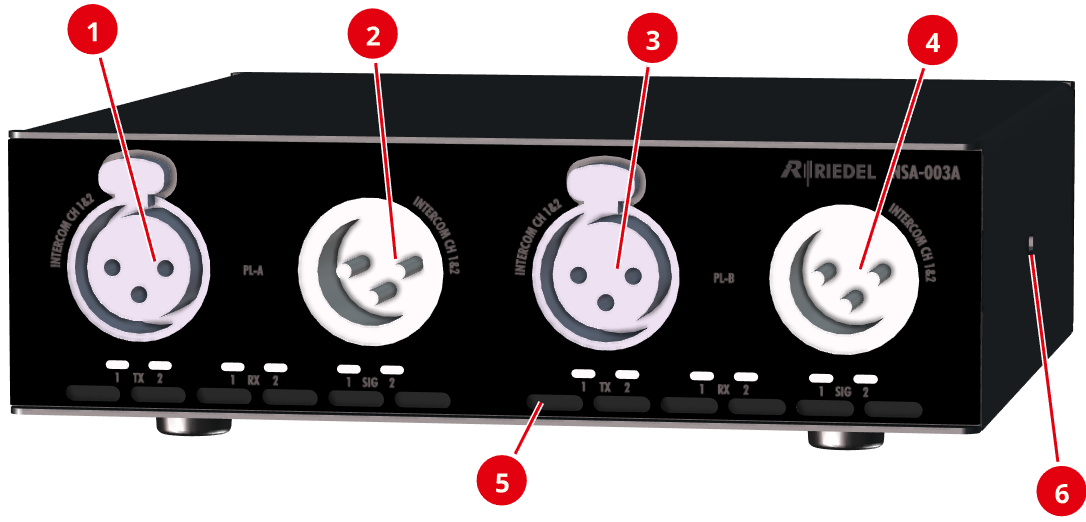

Front view

Product Elements NSA-003A (front view)


Partyline A

1- or 2-channel Input / Output

(XLR-3, female)

1×


(XLR-3, male)

1×


Partyline B

1- or 2-channel Input / Output

(XLR-3, female)

1×


(XLR-3, male)

1×


Air intakes

12×


Opening for attaching a Kensington lock (left & right)

2×

Rear view

The rear of the devices NSA-003A, NSA-006A and NSA-007A is identical.

Product Elements NSA-003A & NSA-006A & NSA-007A (rear view)


GPI – 3x inputs (D-Sub-9, female)

1×


Air outlet

1×


Primary Ethernet connector (RJ-45, PoE, Neutrik etherCON)

1×


Secondary Ethernet connector (RJ-45, PoE, Neutrik etherCON)

1×


Opening for attaching a Kensington lock (left & right)

2×


GPO – 3x outputs (D-Sub-9, male)

1×


USB audio (USB Type C)

1×


Management Ethernet connector (RJ-45)

1×


Air intakes

11×


Find button

1×


Reset button (pinhole)

1×
