hiContact (Mark 3)
Mark 3
At a glance: 1/3-width 19" 1RU GPIO box with 16 opto-isolated inputs sharing a common ground and 16 relay contact outputs. Front display for GPIO status. PoE or external PSU. Up to three units fit in a single 1RU 19" hiContactMount rackmount frame.
hiContact is the GPIO interface for the hi system. Its inputs sense external contact closures, such as buttons, sensors, and machine triggers. Its relay contacts switch external circuits for uses such as Tally lights, on-air indicators, and equipment control.
Dimensional Views
Front View

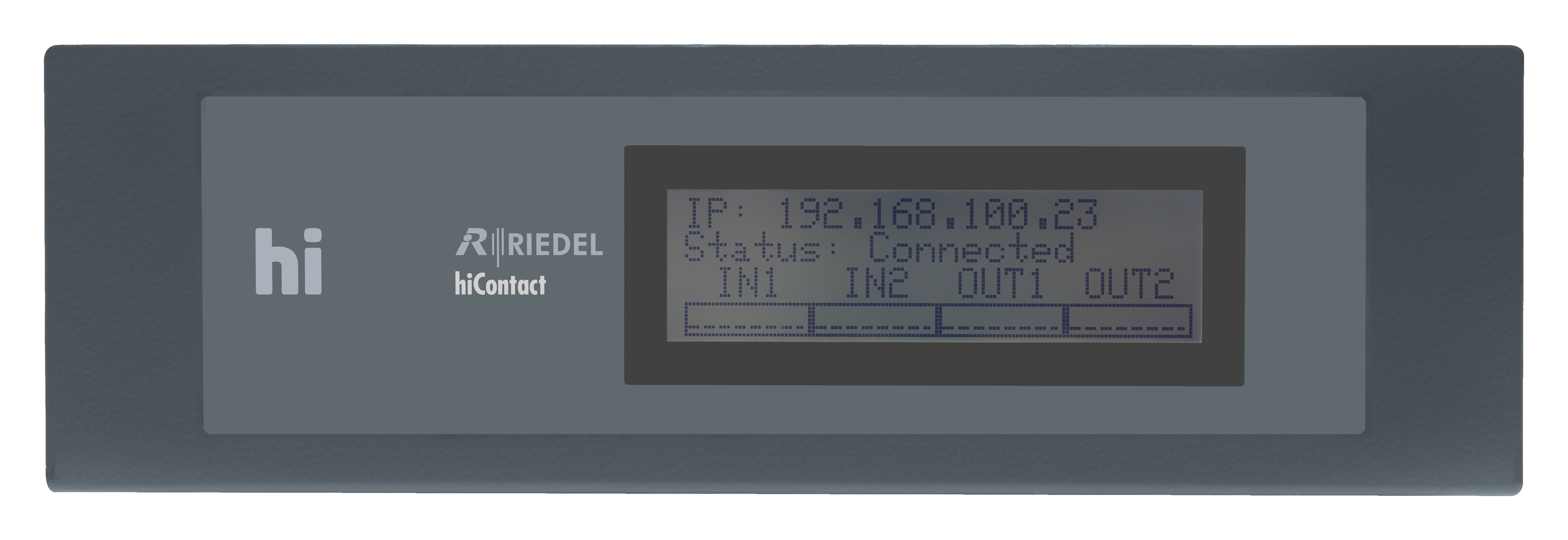

hiContact Mark 3 Front View.
Rear View
hiContact Mark 3 Rear View.
Bottom View
hiContact Mark 3 Bottom View.
Product View
hiContact Mark 3 Front View.
Specifications
Warning
Do not connect any AC voltage, including mains voltage, to a hiContact input or relay contact output. Input signals must be DC and below 20 V DC relative to the shared input ground. Relay contacts switch an externally supplied DC circuit only; do not exceed 30 V DC or 1 A. The relay contacts do not provide a voltage source.
|
Type Number |
hi-IO1616B-PoE |
|---|---|
|
Lifecycle Status |
Current |
|
Inputs |
16 opto-isolated inputs
|
|
Outputs |
16 relay contact outputs |
|
Weight |
520 g |
|
Housing Type |
1/3 of 1 Rack Unit |
|
Dimensions |
140 x 43 x 86 mm (W x H x D) |
|
Network Connection |
RJ45, 100Base-T Ethernet with PoE |
|
PoE Type |
IEEE 802.3af - Type 1 Class 0 - 12.95 W |
|
Operating Temperature Range |
10 °C to +35 °C |
|
Storage Temperature Range |
-20 °C to +80 °C |
|
Input Voltage from External PSU |
12 V DC |
|
Input Voltage from PoE |
48 V DC |
|
Power Consumption |
Max. 6 W |
|
External PSU |
Official hiPSU (ordered separately)
|
|
Power Connector Type |
WAGO 713 Series 6-pin |
|
Input and Output Connectors |
WAGO 713 Series 16-pin (contact closures) |
|
Input Inactive Voltage |
Float
|
|
Input Active Voltage |
< 1.7 V relative to the common input ground |
|
Max. Switching Voltage (relay contacts) |
30 V DC |
|
Max. Switching Current (relay contacts) |
1 A |
|
Protection Class |
IP20 |
|
Conformity Marking |
CE |
|
CB Safety Certification |
IEC 62368-1:2023, IECEE CB Scheme |
|
Regional Declarations |
European Union (CE)
|
|
Electromagnetic Compatibility (EMC) |
acc. to EN 61000-3-2:2019
|
|
EMC Immunity to Interference |
acc. to EN 55035:2017 |
|
EMC Emission of Interference |
acc. to EN 55032:2015 |
|
EU Safety Requirements |
acc. to EN IEC 62368-1:2024 |
|
RoHS compliant |
acc. to EN IEC 63000:2018 |
Warning
Use only with the official hiPSU when using an external power supply.
Inputs: Opto-isolation separates the input circuits from hiContact's internal electronics, but the inputs are not isolated from one another. All 16 share a common ground, and the input voltage thresholds below are referenced to it.
Outputs: The 30 V DC maximum switching voltage and 1 A maximum switching current apply to the relay contacts, not the inputs. Relay contacts do not provide voltage. Use an external supply for the switched circuit and do not exceed either maximum.
Power
The hiContact accepts power either over PoE (IEEE 802.3af, Class 0, up to 12.95 W) or from the external hiPSU through a WAGO 713 Series 6-pin connector. PoE is the simpler installation; an external PSU is needed only where PoE is not available on the network switch.
Ordering Information
The type number in Specifications identifies the device; the SAP SKU below is used for ordering.
|
Item |
SAP SKU |
Description |
|---|---|---|
|
hiContact |
9302877 |
1/3-width 19" 1RU GPIO box with 16 opto-isolated inputs and 16 relay contact outputs; all inputs share a common ground; front display for GPIO status; powered by PoE or external PSU; up to three units mounted on one 1RU 19" hiContactMount rackmount. Operation requires hiGlue. The hiPSU is not included and must be ordered separately. |
|
hiContactMount |
9302878 |
19" 1RU rackmount frame for up to three hiContact units. |
|
hiPSU |
9302879 |
External PSU for hiPush and hiContact. |
Power Connector Pinout
Information
See also: Hardware Installation and Commissioning for IP address configuration and the disposal/WEEE notice.
