Product Elements (NSA-010C)

Front view

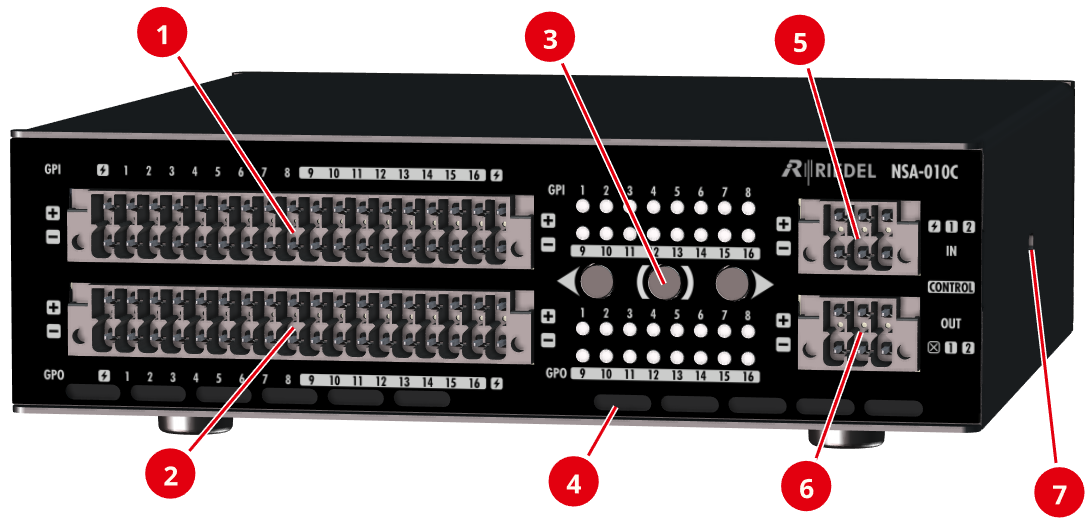

Product Elements NSA-010C (front view)


GPI (16× Inputs, 2× Aux Power)

1×


GPO (16× Outputs, 2× Aux Power)

1×


Test buttons

3×


Air intakes

11×


Control In (2× Control Voltage Inputs, 1× Aux Power)

1×


Control Out (2× Control Voltage Outputs)

1×


Opening for attaching a Kensington lock (left & right)

2×

The GPI/GPO and Control In/Out connections are connected via the plug connector included in the scope of delivery.

Rear view

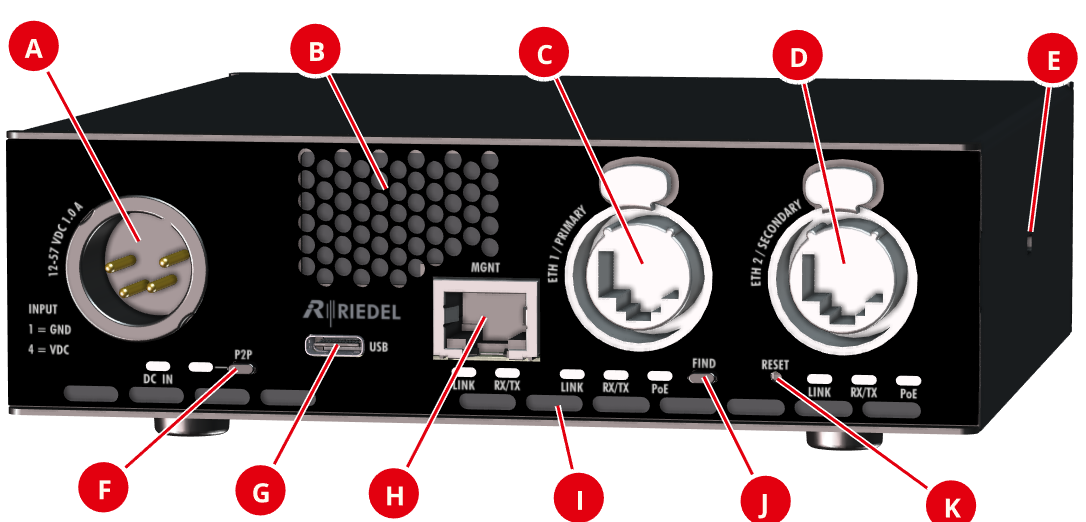

Product Elements NSA-010C (rear view)


DC IN (12 ... 57 VDC, max. 1 A, XLR4, male)

1×


Air outlet

1×


Primary Ethernet connector (RJ-45, PoE, Neutrik etherCON)

1×


Secondary Ethernet connector (RJ-45, PoE, Neutrik etherCON)

1×


Opening for attaching a Kensington lock (left & right)

2×


P2P button (for future use)

1×


USB (USB Type-C)

1×


Management Ethernet connector (RJ-45)

1×


Air intakes

11×


Find button

1×


Reset button (pinhole)

1×
