This tab is not available on the NSA-010C.

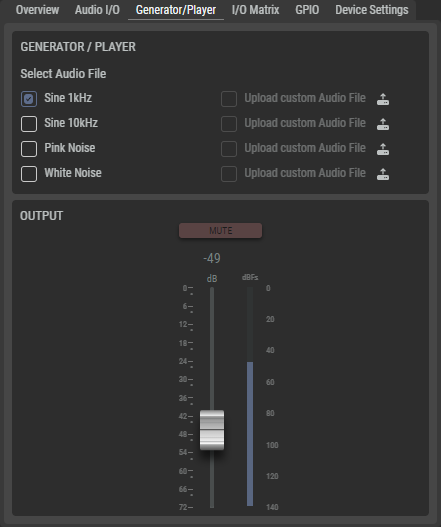

On this tab, an audio test signal or a custom audio file (e.g. Station ID or Device ID) can be selected and played-out. Selected file automatically plays in a loop as long as it is selected.
|
Generator/Player |
Select an integrated test signal or your own test signal. |
|
|
Sine 1 kHz |
Select one of the integrated audio signals. |
|
|
Sine 10 kHz |
||
|
Pink Noise |
||
|
White Noise |
||
|
Upload custom Audio File |
Upload up to four of your own audio signals in '.wav/mono' format. The audio file must have the same sampling rate that is set in the device.
|
|
|
Output |
The audio level can be adjusted with the fader or muted with the button. |
|
The audio output of the test signal is defined by the mapping in the I/O Matrix.
