This tab is not available on the NSA-004A and NSA-005A.

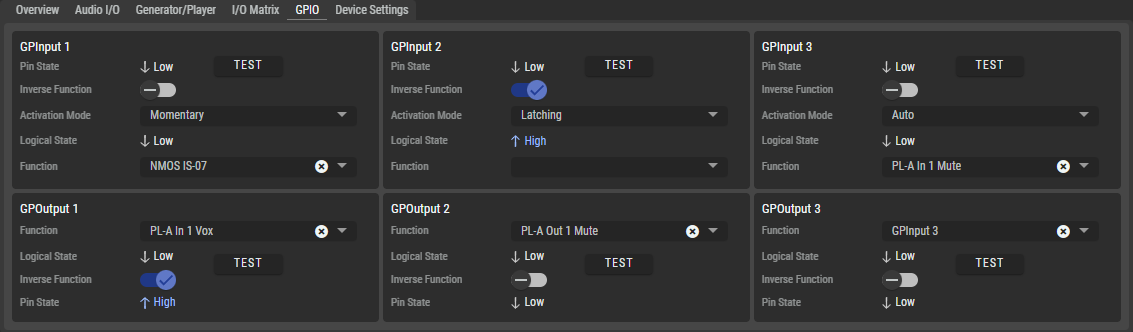

On this tab, the functions of the GPI inputs and GPO outputs can be defined and tested. Depending on the NSA type, a different number of inputs/outputs are available.

	NSA-003A	NSA-006A	NSA-007A	NSA-010C
GPInputs / GPOutputs	3 / 3	3 / 3	3 / 3	16 / 16

The View selection at the bottom right of the web interface can be used to set whether GPIs and GPOs (All), only GPIs (GPInputs) or only GPOs (GPOutputs) are displayed.

GPInput 1...3

Pin State	Displays the physical state of the input pin: Low (0/off) or High (1/on).
	TEST	The state is inverted as a test as long as the button is pressed.
Inverse Function	If activated, the configured function of the input is triggered inverted.
Activation Mode	Defines whether switching is latching, non-latching (momentary) or automatic (short signal: latching, long signal: momentary).
Logical State	Displays the logical state of the input that triggers the configured function.
Function	The selected function will be activated if the logical state is High (1/on).
	NMOS IS-07	Sends/receives a NMOS IS-07 for high/low state.
	GPOutput 1 ... x	Switches the output state depending on the selected input state.
	<Channel> Mute	The GPI mutes the <channel>. Available channels for switching: Partyline A/B In (1, 2)^3A Partyline A/B Out (1, 2)^3A Analog Out (1, 2)^6-7A Digital Out (1L, 1R, 2L, 2R)^6-7A Analog In TRIM 1 & Analog In TRNS 1^6-7A Digital In 1 (L, R)^6-7A USB In (L, R) USB Out (L, R)
	<Channel> Call^*3A	The GPI initiates a Call at the input of the <channel>. Available channels for switching: Partyline A Partyline B
	<Channel> MicKill^*3A	The GPI mutes the microphone of the <channel>. Available channels for switching: Partyline A Partyline B
^3A only for NSA-003A ^6-7A only for NSA-006A, NSA-007A

GPOutput 1...3

Trigger	Selection of the function that is to switch the state of the output pin.
	NMOS IS-07	Sends/receives a NMOS IS-07 for high/low state.
	GPInput 1 ... x	Switches the output state depending on the selected input state.
	<Channel> Mute	The GPO is switched by the Mute function of the <channel>. Available channels for switching: Partyline A/B In (1, 2)^3A Partyline A/B Out (1, 2)^3A Analog Out (1, 2)^6-7A Digital Out (1L, 1R, 2L, 2R)^6-7A Analog In TRIM 1 & Analog In TRNS 1^6-7A Digital In 1 (L, R)^6-7A USB In (L, R) USB Out (L, R)
	<Channel> Vox	The GPO is switched by the Vox function of the <channel>. Available channels for switching: Partyline A/B In (1, 2)^3A Partyline A/B Out (1, 2)^3A Analog Out (1, 2)^6-7A Digital Out (1L, 1R, 2L, 2R)^6-7A Analog In TRIM 1 & Analog In TRNS 1^6-7A Digital In 1 (L, R)^6-7A USB In (L, R) USB Out (L, R)
	<Channel> Call^*3A	The GPO is switched by the Call function of the <channel>. Available channels for switching: Partyline A In (1, 2) Partyline B In (1, 2)
	<Channel> MicKill^*3A	The GPO is switched by the MicKill function of the <channel>. Available channels for switching: Partyline A In (1, 2) Partyline B In (1, 2)
Logical State	Shows the logical state of the configured function at the output.
Inverse Function	If activated, the configured function of the output is triggered inverted.
Pin State	Displays the physical state of the output pin: Low (0/off) or High (1/on).
	TEST	The state is inverted as a test as long as the button is pressed.
^3A only for NSA-003A ^6-7A only for NSA-006A, NSA-007A
