hiPush20 (Mark 3)
Mark 3
19" 1RU Hardware Panel with 20 buttons for operation of the hi system. Each button has an LCD display (64 x 32 pixels) that shows its assigned function.
Dimensional Views
Front View

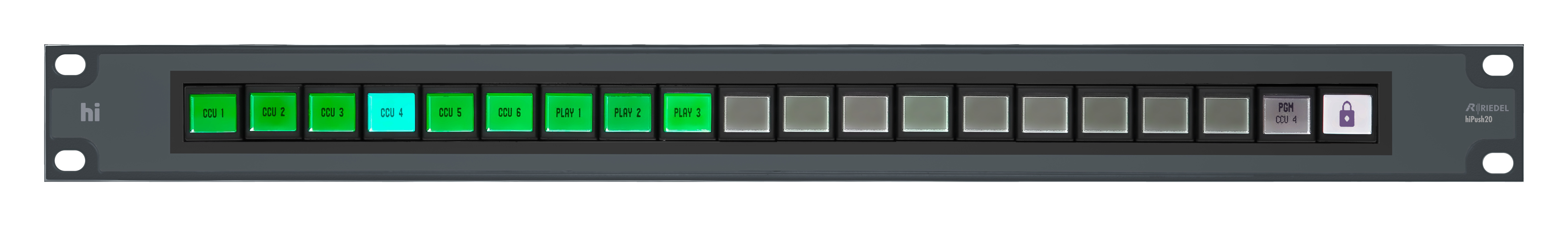

hiPush20 Mark 3 Front View.
Rear View
hiPush20 Mark 3 Rear View.
Top View
hiPush20 Mark 3 Top View.
Product View
hiPush20 Mark 3 Front View.
Specifications
|
Regulatory Model |
HI-PNL007 |
|---|---|
|
Lifecycle Status |
Current |
|
Number of Switches |
20 |
|
Number of Encoders |
0 |
|
Weight |
1010 g |
|
Housing Type |
1 Rack Unit |
|
Dimensions |
483 x 44 x 44 mm (W x H x D) |
|
Network Connection |
RJ45, 100Base-T Ethernet |
|
Operating Temperature Range |
10 °C to +35 °C |
|
Storage Temperature Range |
-10 °C to +50 °C |
|
Switch Operating Force |
1.7 ± 0.5 N |
|
Input Voltage |
12 V DC |
|
Power Consumption |
Max. 20 W |
|
External PSU |
Official hiPSU (ordered separately)
|
|
Power Connector Type |
WAGO 713 Series 6-pin |
|
Protection Class |
IP20 |
|
Conformity Marking |
CE |
|
CB Safety Certification |
IECEE CB Certificate SE-118960 (IEC 62368-1:2023) |
|
Regional Declarations |
European Union (CE)
|
|
Electromagnetic Compatibility (EMC) |
acc. to EN 61000-3-2:2019
|
|
EMC Immunity to Interference |
acc. to EN 55035:2017 |
|
EMC Emission of Interference |
acc. to EN 55032:2015 |
|
RoHS compliant |
acc. to EN IEC 63000:2018 |
The product label identifies the regulatory model as HI-PNL007.
Warning
Use only with the official hiPSU.
Ordering Information
The hiPSU is not included and must be ordered separately.
The regulatory model in Specifications identifies the product for compliance purposes; the SAP SKU below is used for ordering.
|
Item |
SAP SKU |
|---|---|
|
hiPush20 |
9302866 |
|
hiPSU |
9302879 |
Power Connector Pinout
For pin assignments, see Power Connector Pinout.
