hiPush32-D (Mark 3)
Mark 3
Desktop Hardware Panel with 32 buttons and 2 rotary encoders for operation of the hi system. Each button has an LCD display (64 x 32 pixels) that shows its assigned function.
The 32-D variant is a PoE-powered desktop panel intended for operator positions where a self-contained, single-cable installation is preferred. Power and data are delivered together over a single Ethernet cable from a PoE-capable network switch (IEEE 802.3af, Class 0).
Dimensional Views
Front View
hiPush32-D Mark 3 Front View.
Rear View
hiPush32-D Mark 3 Rear View.
Top View
hiPush32-D Mark 3 Top View.
Product View

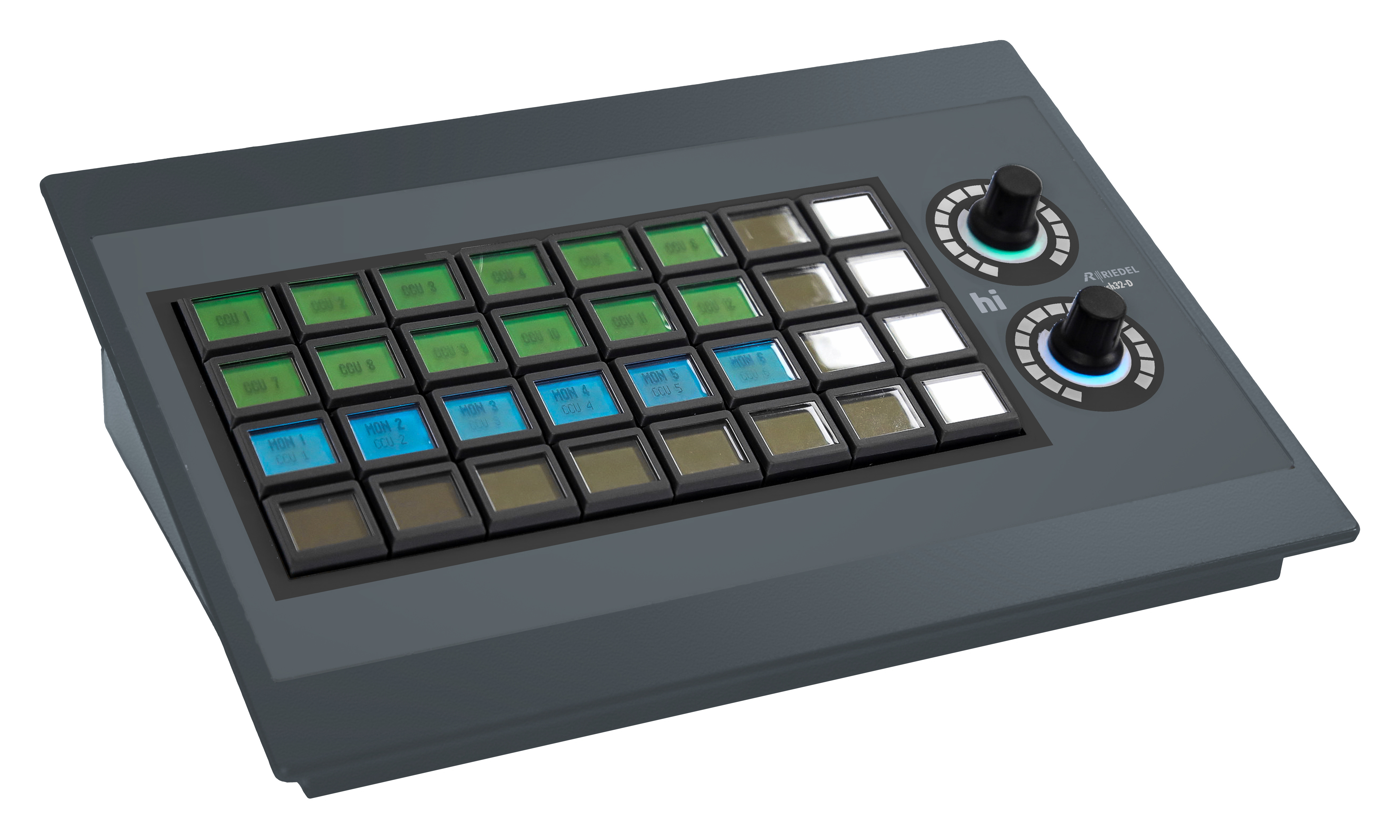

hiPush32-D Mark 3 Front View.
Specifications
|
Regulatory Model |
HI-PNL011 |
|---|---|
|
Lifecycle Status |
Current |
|
Number of Switches |
32 |
|
Number of Encoders |
2 |
|
Weight |
1095 g |
|
Housing Type |
Desktop |
|
Dimensions |
230 x 160 x 58 mm (W x H x D) |
|
Network Connection |
RJ45, 100Base-T Ethernet with PoE |
|
PoE Type |
IEEE 802.3af - Type 1 Class 0 - 12.95 W |
|
Operating Temperature Range |
10 °C to +35 °C |
|
Storage Temperature Range |
-10 °C to +50 °C |
|
Switch Operating Force |
1.7 ± 0.5 N |
|
Input Voltage from PoE |
48 V DC |
|
Power Consumption |
Max. 12 W |
|
Protection Class |
IP20 |
|
Conformity Marking |
CE |
|
CB Safety Certification |
IECEE CB Certificate SE-119797 (IEC 62368-1:2023) |
|
Regional Declarations |
European Union (CE)
|
|
Electromagnetic Compatibility (EMC) |
acc. to EN 55032:2022
|
|
EU Safety Requirements |
acc. to EN IEC 62368-1:2024+A11:2024 (IEC 62368-1:2023) |
|
RoHS compliant |
acc. to EN IEC 63000:2018 |
The product label identifies the regulatory model as HI-PNL011.
Ordering Information
The regulatory model in Specifications identifies the product for compliance purposes; the SAP SKU below is used for ordering.
|
Item |
SAP SKU |
Description |
|---|---|---|
|
hiPush32-D |
9302867 |
PoE-powered desktop panel with 32 high-contrast full-size LCD buttons and 2 rotary encoders with position meters. Operation requires hiGlue and one hiUser session. |
Power
The hiPush32-D is powered exclusively over PoE; no external PSU is required or supplied. The connected network switch must provide IEEE 802.3af PoE (Class 0, up to 12.95 W). Maximum power consumption is 12 W.
