These plug-ins are only Producers and are connected as the source for Consumers (for example, a Mixer Input).

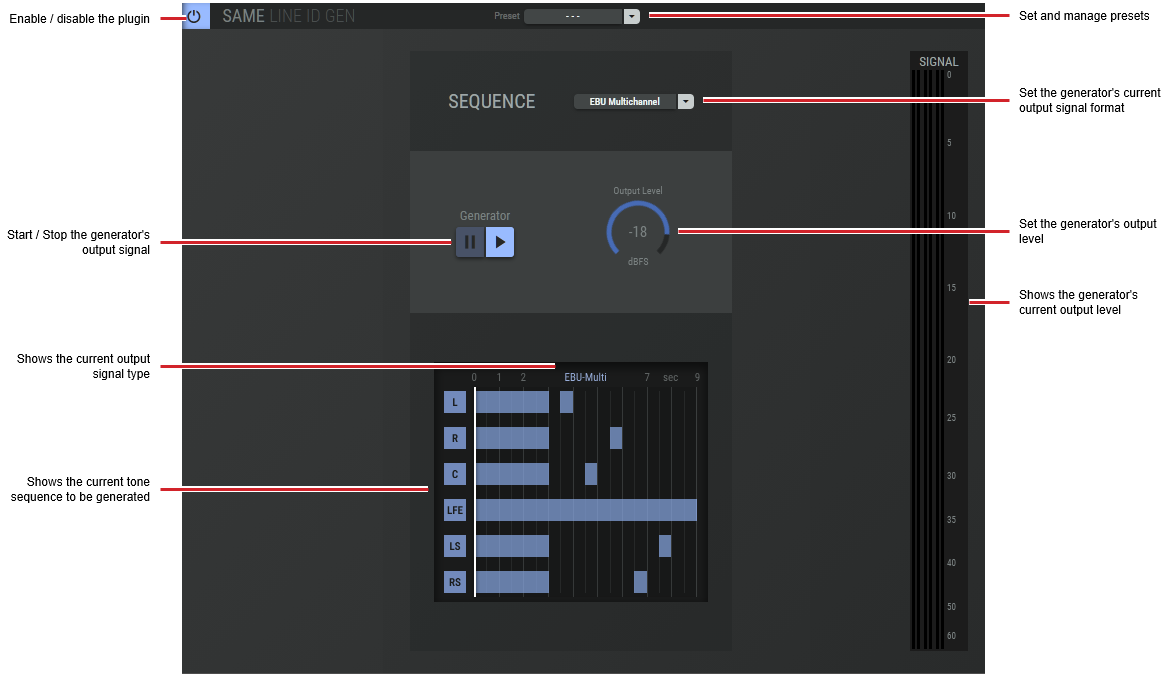

Line Identification Generator
Variants are available to support the following audio leg group types:
|
Mono |
Stereo |
5.1 |
|---|---|---|
|
|
|
|
This plugin generates line identification tone bursts, according to
-
EBU R49 (Two channel audio identification).
-
BLITS (Black and Lanes’ Ident Tones for Surround).
-
EBU multichannel identification signal.
-
GLITS (Graham's Line Identification Tone System).
This plugin can be inserted into a signal path. In bypass mode, the input is just routed to the output. Otherwise, the generated sequence is inserted (overwriting the input).
Failed to load the diagram preview image.
Authentication Required
Page ID: 1644658873
Failed to load the diagram preview image.
Authentication Required
Page ID: 1644658873
|
Preset |
The configuration of a SAME Application can be memorized as a preset for instant recall. See SAME Application Preset Configuration. |
|
Sequence |
Set the line identification generator’s output signal type.
|
|
Generator |
Start / Stop the generator's output signal. |
|
Output Level |
Click the rotary fader and drag your mouse left to right to set the level. |
|
Sequence Graph |
Shows the current tone sequence to be generated. |
|
Signal |
Shows the generator’s current signal output level. |

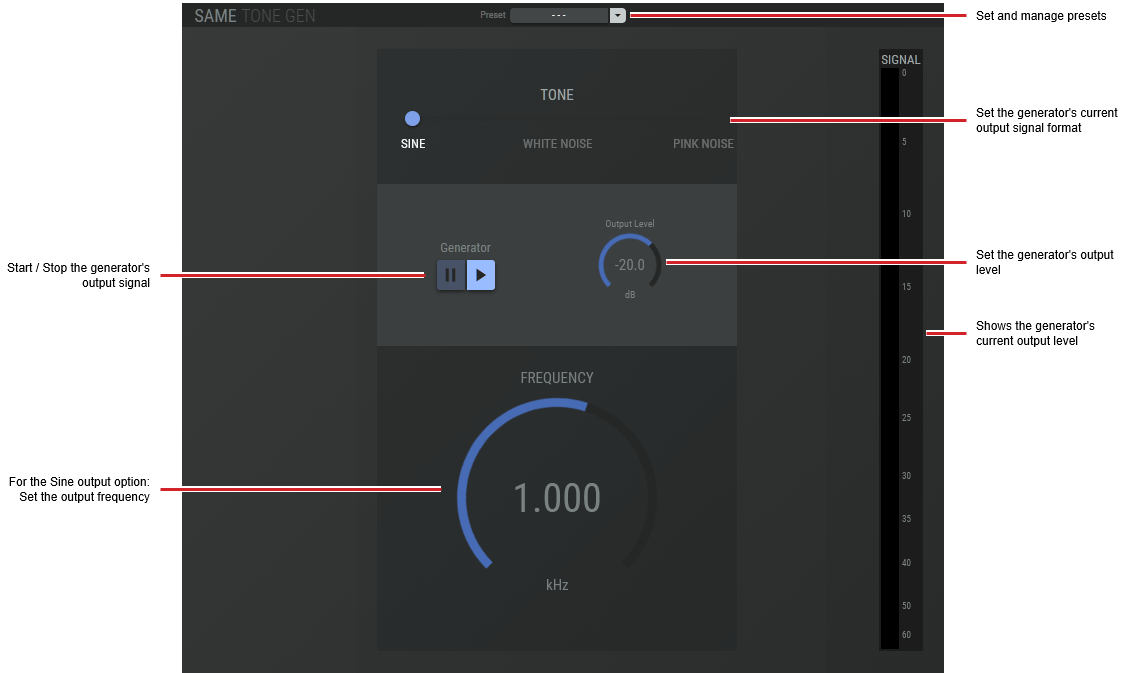

Signal/Noise Generator
Variants are available to support the following audio leg group types:
|
Mono |
Stereo |
5.1 |
|---|---|---|
|
|
|
|
This plugin generates a sine tone, white noise, or pink noise.
Failed to load the diagram preview image.
Authentication Required
Page ID: 1644658873
Failed to load the diagram preview image.
Authentication Required
Page ID: 1644658873
|
Preset |
The configuration of a SAME Application can be memorized as a preset for instant recall. See SAME Application Preset Configuration. |
|
Tone |
Set the generator’s output signal type.
|
|
Generator |
Start / Stop the generator's output signal. |
|
Output Level |
Click the rotary fader and drag your mouse left to right to set the level. |
|
Frequency |
For the Sine output option: Set the output frequency. |
|
Signal |
Shows the generator’s current signal output level. |
