SAME Mixer Signal Path / Block Diagrams

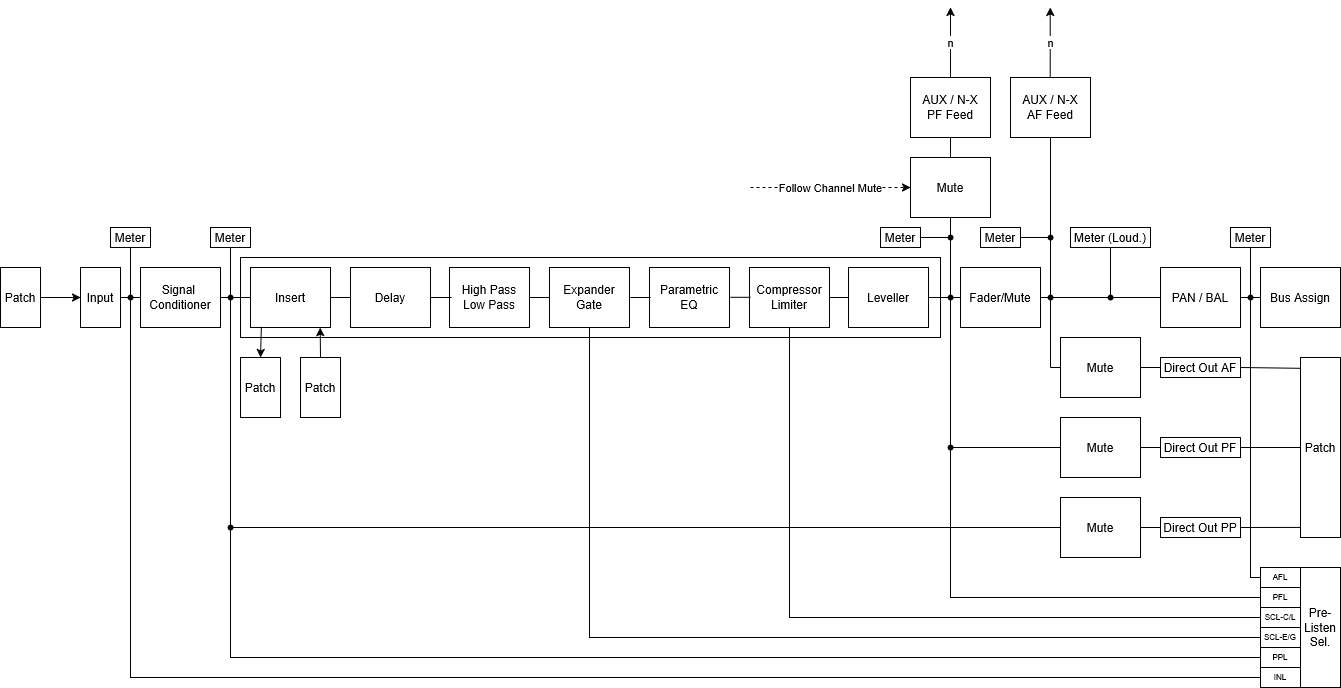

Input Channel Types

Can be assigned to:

  • Group Buses

  • Automix Buses (limited to 4, 8 or 16)

  • Main Buses

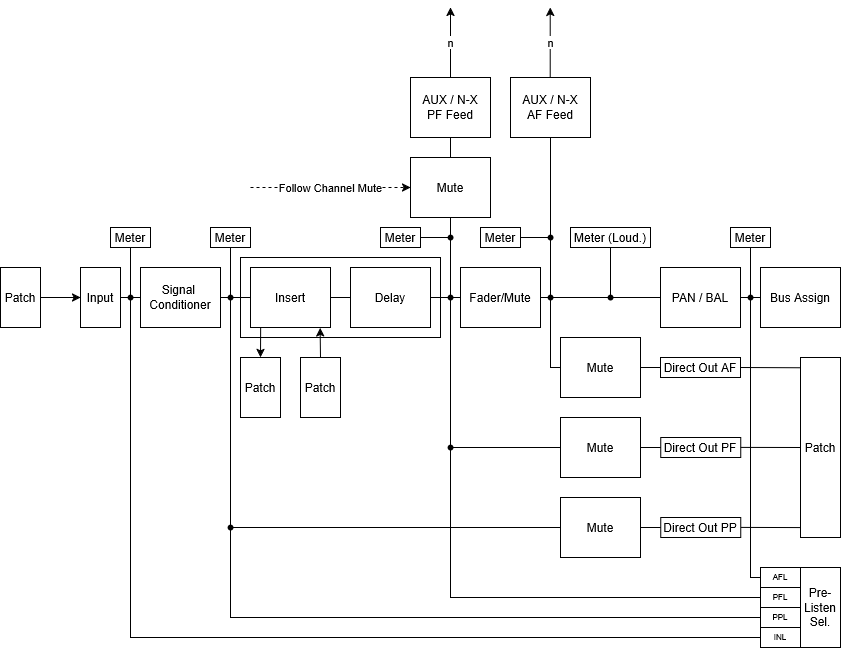

Light

Variants are available to support the following audio leg group types:

Mono

Stereo

5.1

check mark

check mark

check mark

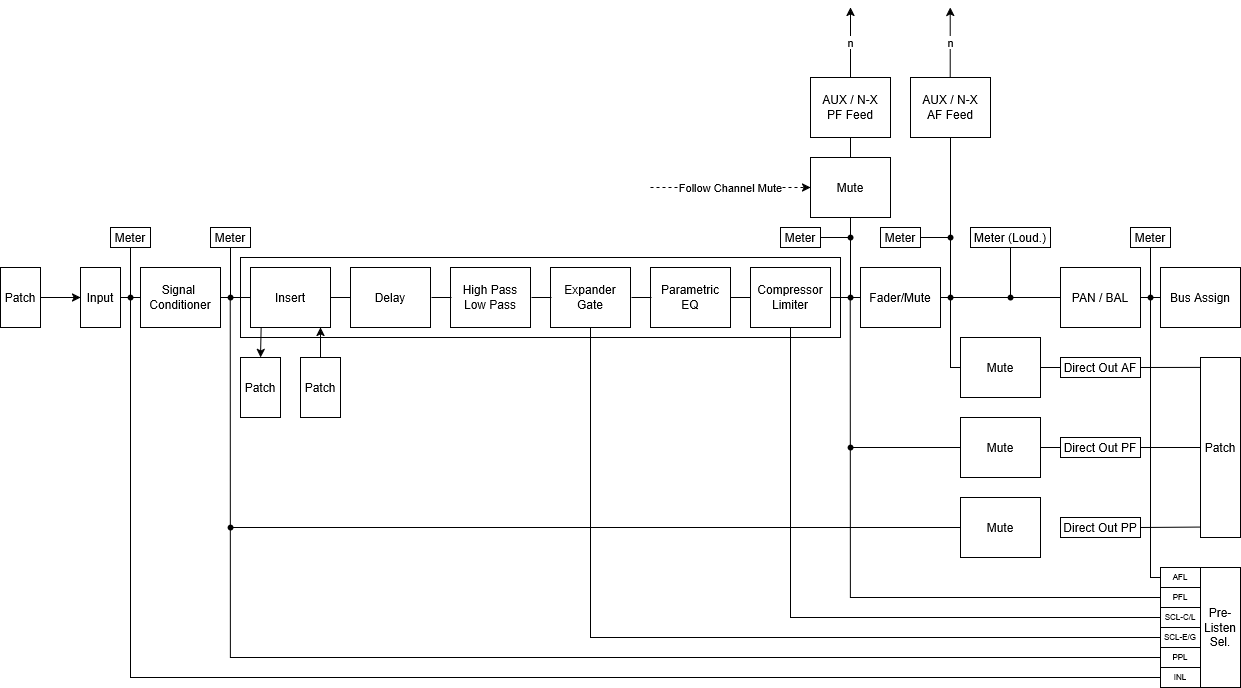

Standard

Variants are available to support the following audio leg group types:

Mono

Stereo

5.1


check mark

check mark

Standard+

Variants are available to support the following audio leg group types:

Mono

Stereo

5.1

check mark

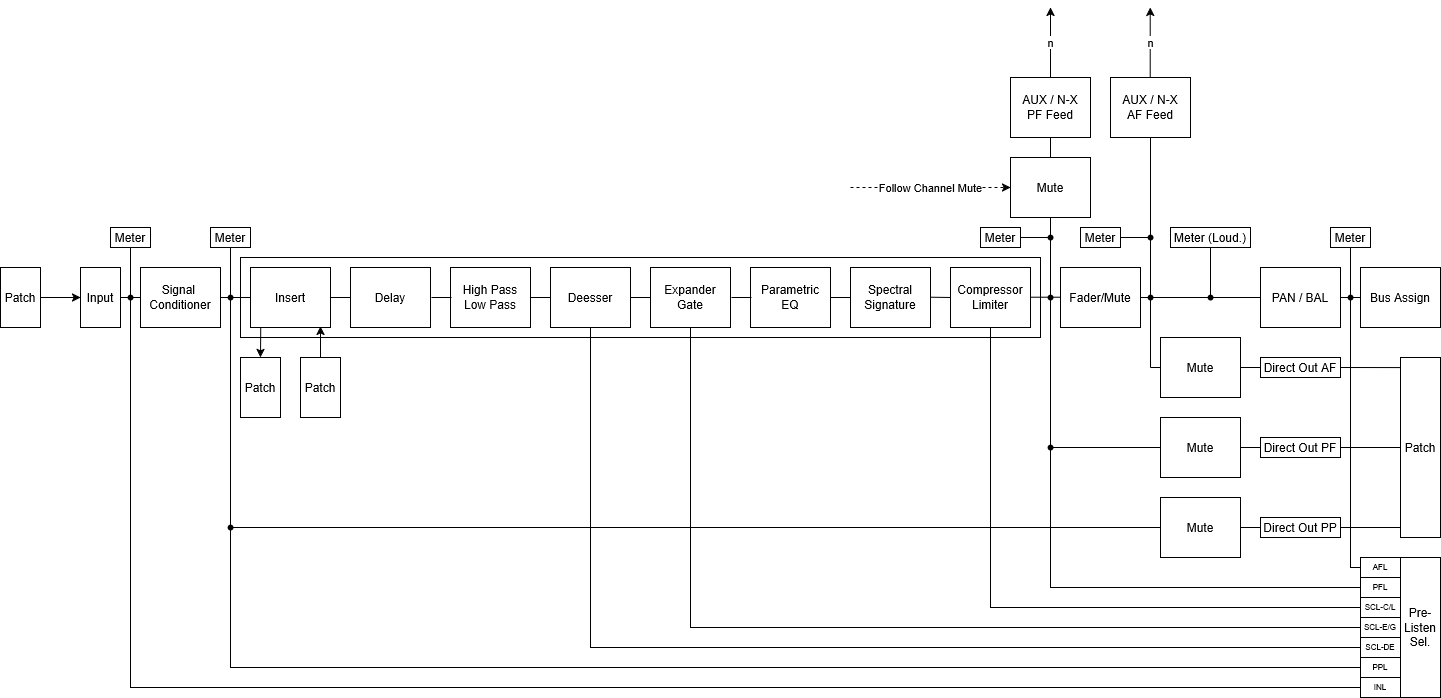

Voice

Variants are available to support the following audio leg group types:

Mono

Stereo

5.1

check mark



Leveller

Variants are available to support the following audio leg group types:

Mono

Stereo

5.1


check mark

check mark

Leveller+

Variants are available to support the following audio leg group types:

Mono

Stereo

5.1

check mark

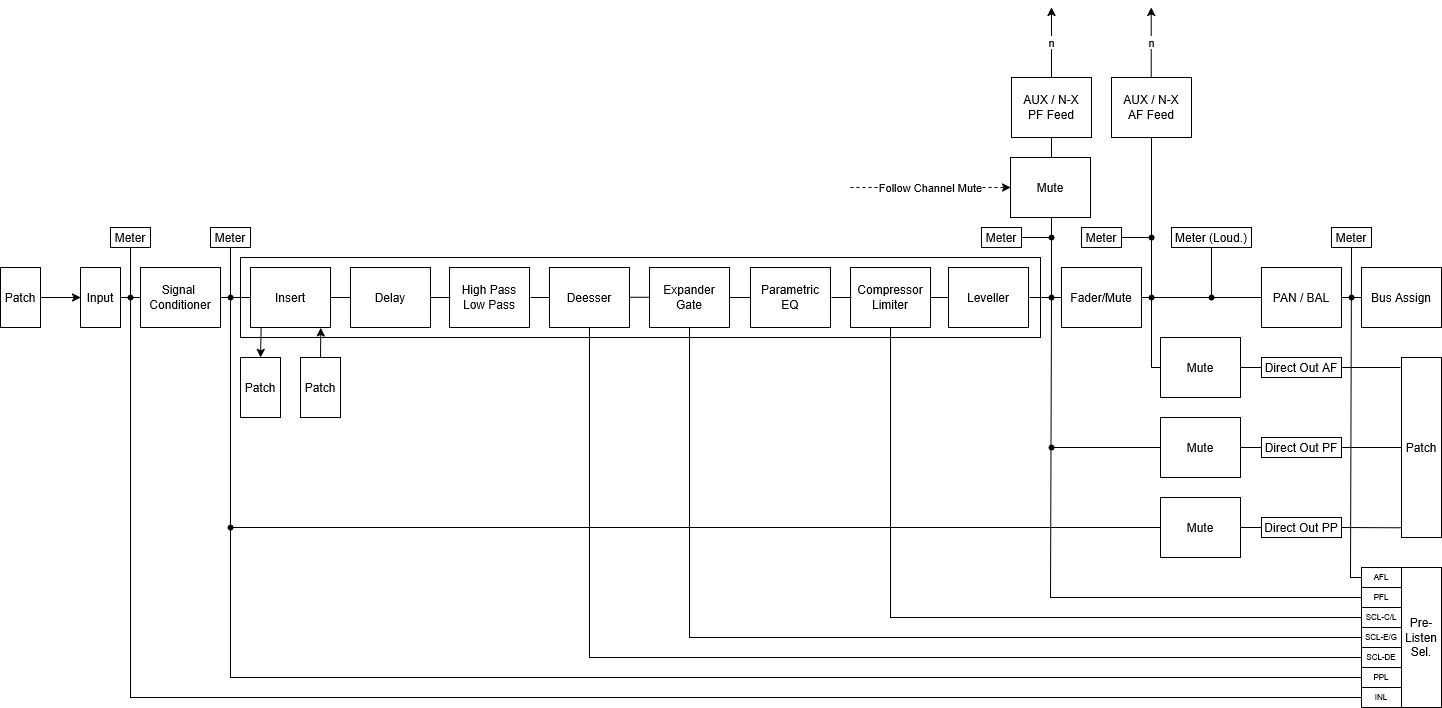

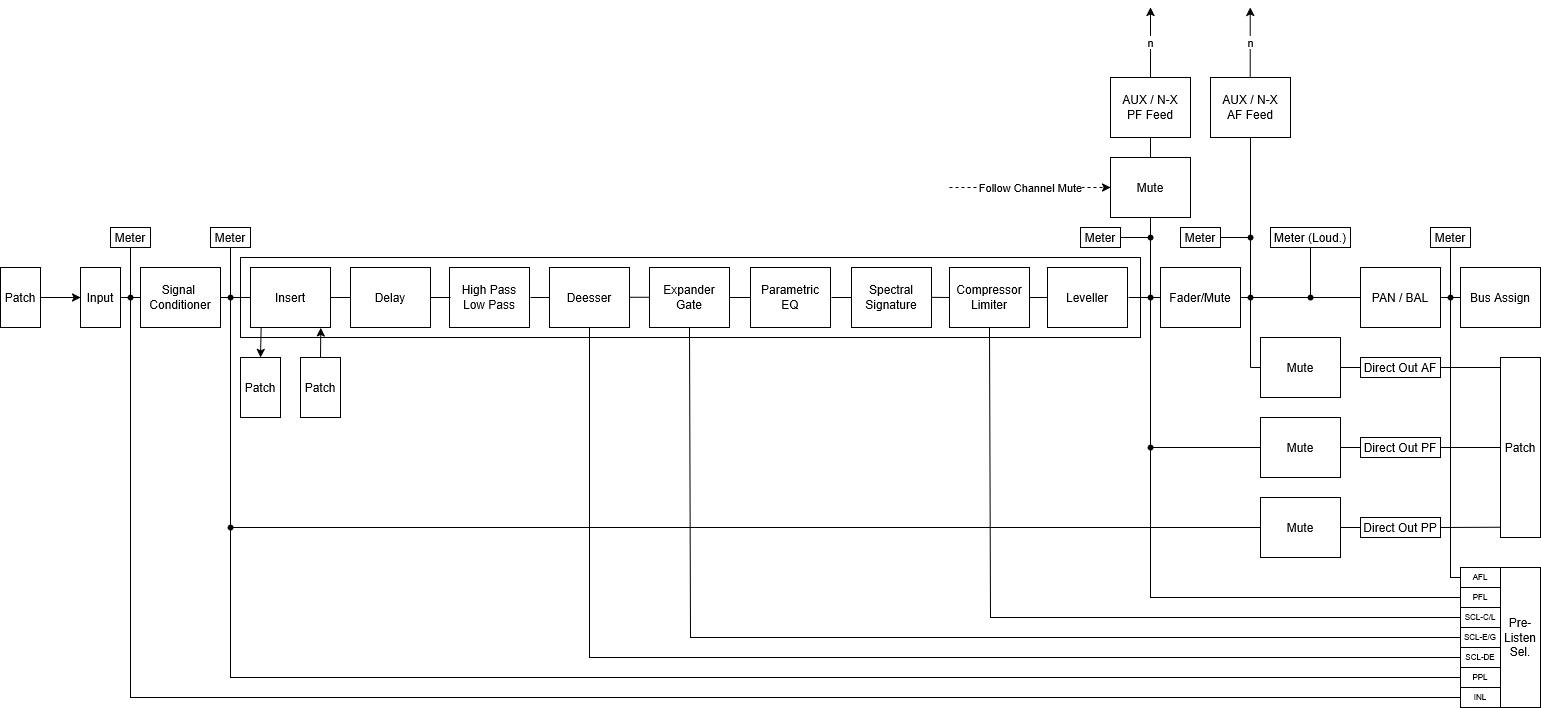

Voice Leveller

Variants are available to support the following audio leg group types:

Mono

Stereo

5.1

check mark



Auto Mixer

An auto mixer uses gain sharing to attenuate un-used inputs while providing more gain to input(s) that have an active signal.



Group Bus Channel Types

Can be assigned to:

  • Group Buses

  • Main Buses

Light

Variants are available to support the following audio leg group types:

Mono

Stereo

5.1

check mark

check mark

check mark

Standard

Variants are available to support the following audio leg group types:

Mono

Stereo

5.1

check mark

check mark

check mark


AUX/N-X Bus Channel Types

Can be assigned to:

  • Group Buses

  • Main Buses

Light

Variants are available to support the following audio leg group types:

Mono

Stereo

5.1

check mark

check mark

check mark

info Number of Talkback feeds into  the Talk Back-Injection summation depends on the number of Workplace Monitoring paths (Mon Source Out, Listening Out, Talk Back In).

info  Mono Talk Back source is summed to:

  • Mono channel: Mono

  • Stereo channel: Left & Right (-3 dB)

  • 5.1 channel: Center

Main Bus Channel Types

Cannot be assigned to any other Buses

Light

Variants are available to support the following audio leg group types:

Mono

Stereo

5.1

check mark

check mark

check mark

info  Number of Talk Back (TB) feeds into the Talk Back-Injection summation depends on the number of Workplace Monitoring paths (Mon Source Out, Listing Out, Talk Back In)

info  Mono Talk Back source is summed to:

  • Mono channel: Mono

  • Stereo channel: Left & Right (-3 dB)

  • 5.1 channel: Center

Standard

Variants are available to support the following audio leg group types:

Mono

Stereo

5.1

check mark

check mark

check mark

info  Number of Talk Back (TB) feeds into  the Talk Back-Injection summation depends on the number of Workplace Monitoring paths (Mon Source Out, Listing Out, Talk Back In).

info  Mono Talk Back source is summed to:

  • Mono channel: Mono

  • Stereo channel: Left & Right (-3 dB)

  • 5.1 channel: Center
