PGM Dirty and PGM Clean Outputs in Production

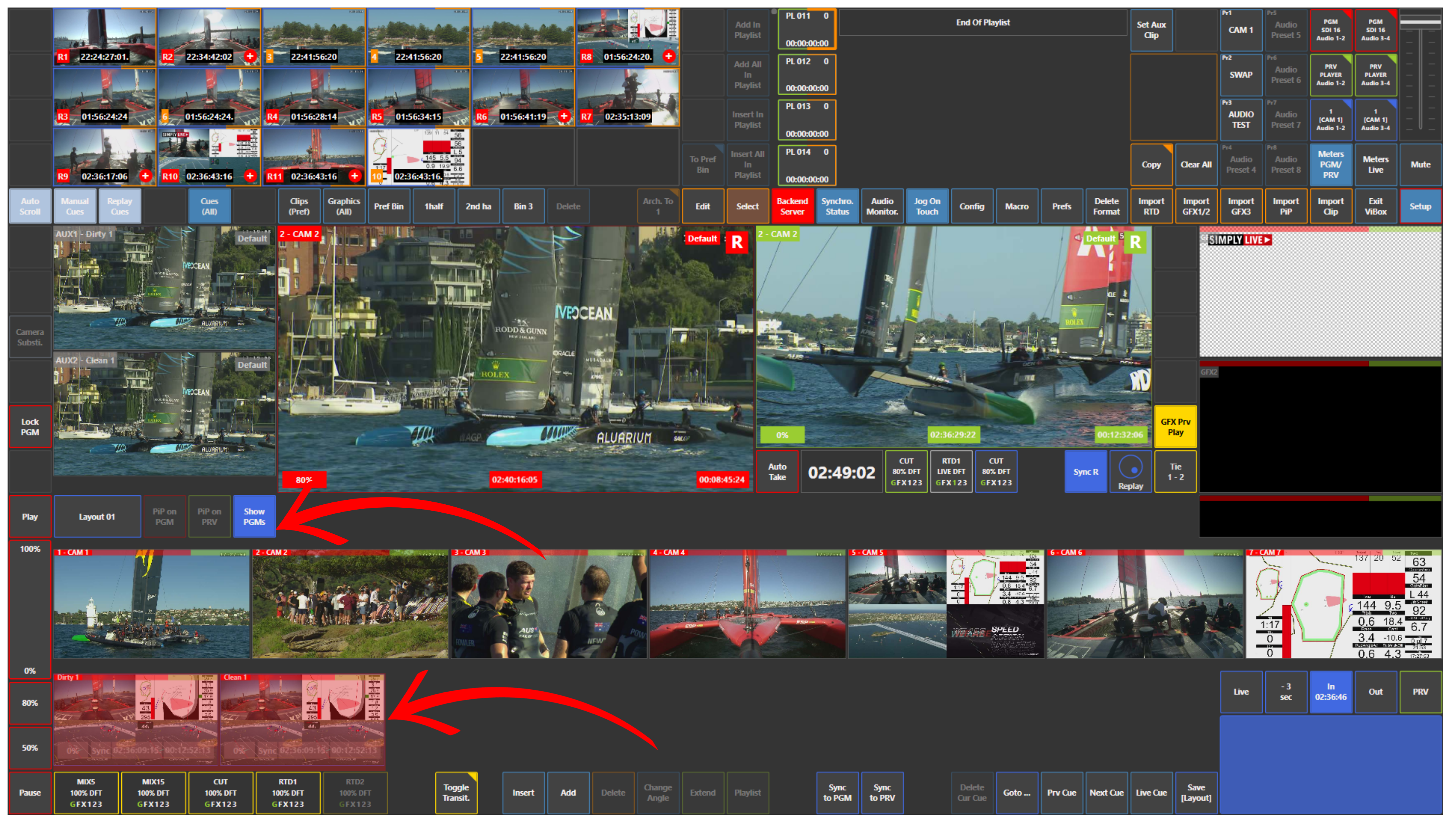

If you want to see your PGM Dirty and PGM Clean outputs in Production, activate Show PGMs.

This displays your program outputs on the interface:

This is useful when you need to monitor both versions of the output during production.

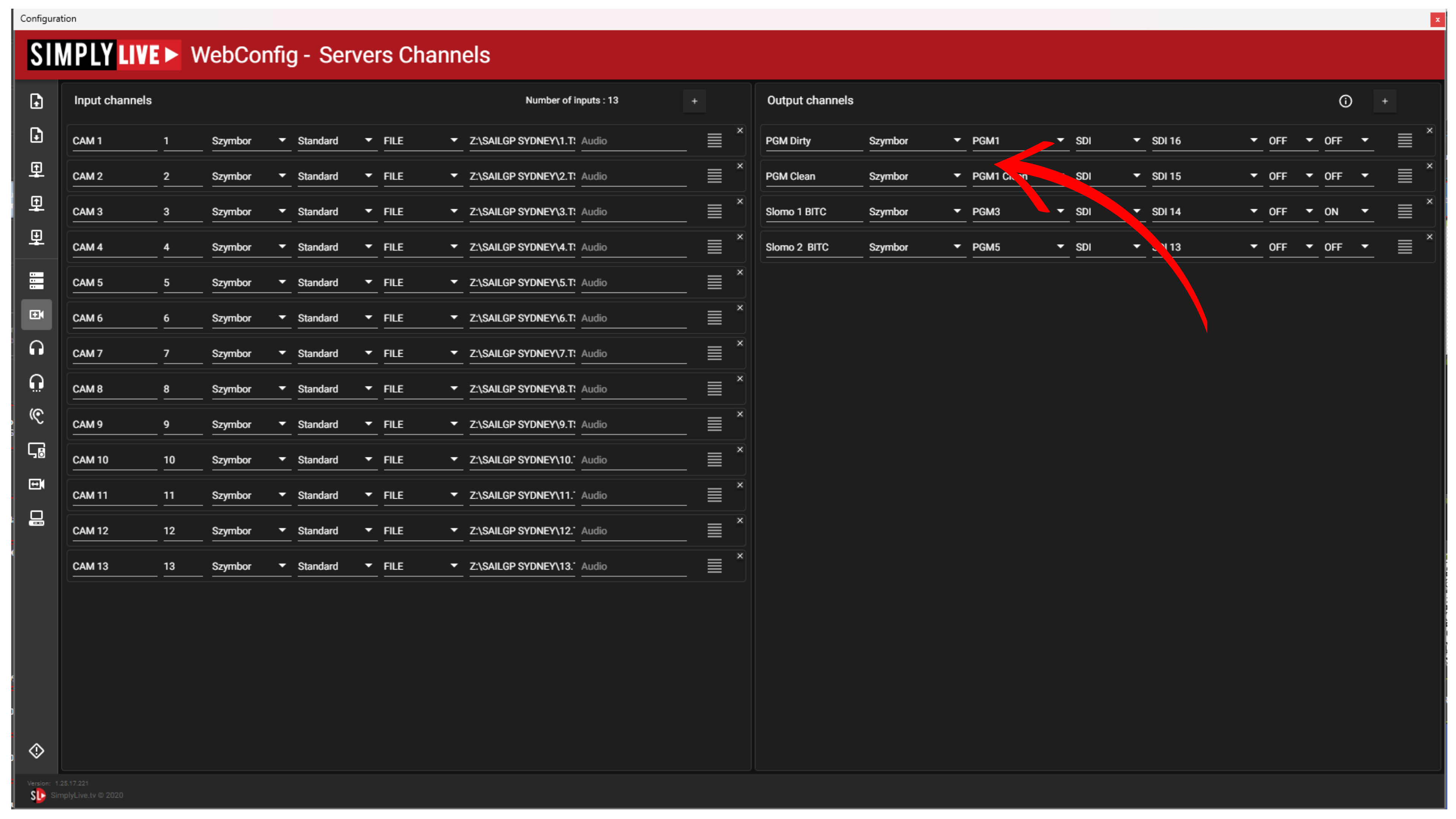

You can assign these outputs to the required output channels in:

Setup → Config → Servers Channels

In Servers Channels, you can configure the output type and channel for each output.

Available output types include:

This allows you to route PGM Dirty and PGM Clean to the correct destination depending on your workflow.

Use Case – Live Production Scenario

You are producing a live show and need to send:

Activate Show PGMs to monitor both outputs in Production.

Then go to Setup → Config → Servers Channels and assign PGM Dirty and PGM Clean to the required output type and channel.

This is especially useful when sending outputs to transmission, LED walls, multiviewers, or external systems.

Pro Tip

Use PGM Dirty when you need the final on-air version with graphics.

Use PGM Clean when another destination needs the same programme feed without graphics.
